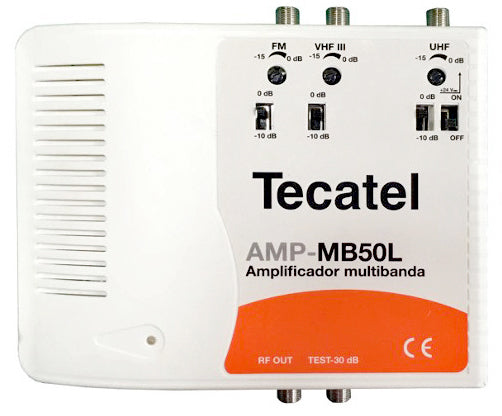

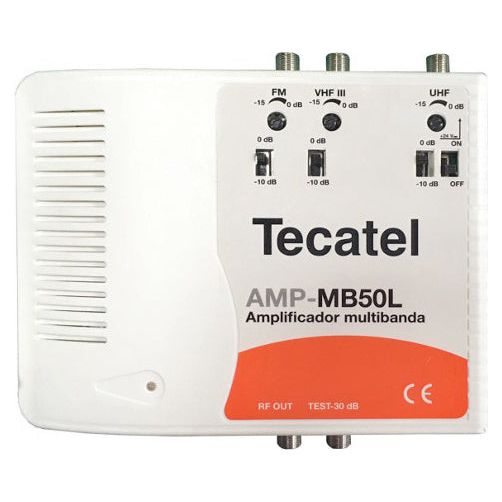

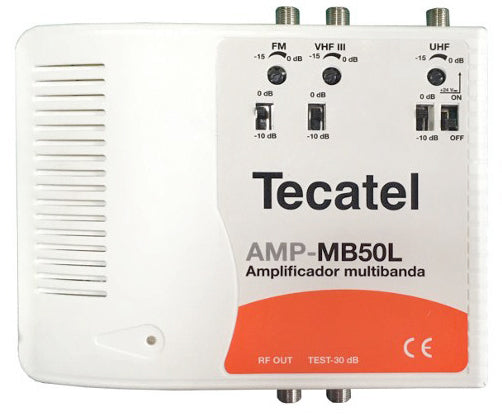

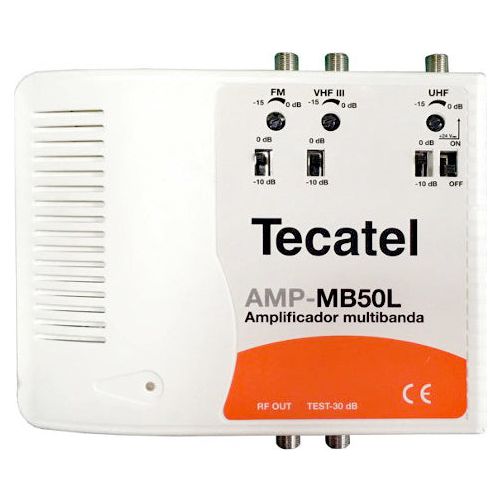

Tecatel Central Amplifier AMP-MB50L

Model : AMP-MB50FI

Earnings :

• FM + VHF I (47-108 MHz): 35 dB
• VHF III + DAB (174 - 230 MHz): 35 dB
• 2x UHF (470 - 694 MHz): 45 dB
• IF (950-2,300 MHz): 40 dB

Noise, typical : < 5 dB

Output level IMD3=-60dB (DIN450004B) :

• 116 dBμV (VHF)
• 118 dBμV (UHF)

SAT IMA35 output level : 118 dBμV (FI)

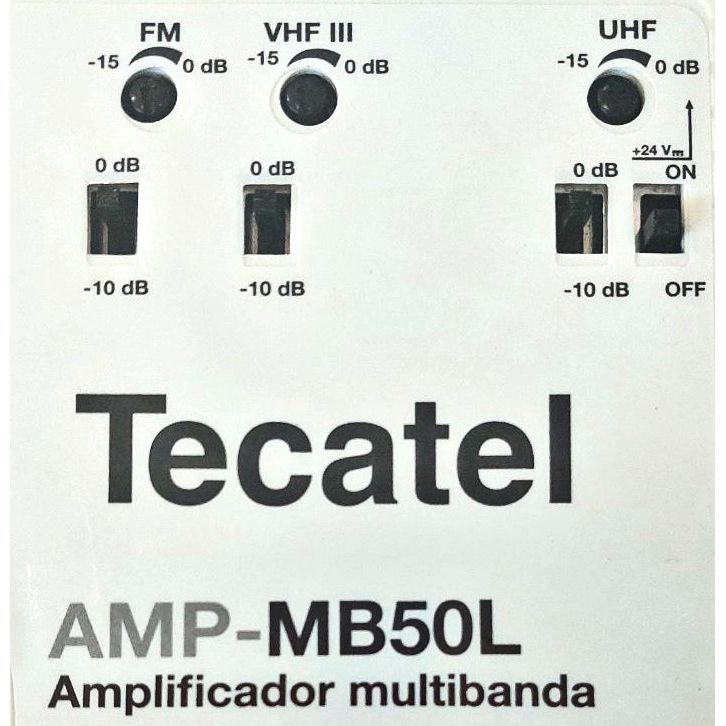

Attenuator gain adjustment switch : 0~-15 dB (VHF/UHF), 0~-10 dB (FI)
Return loss : > 10 dB
LNB power supply : Switchable 0-13-18 V
External DC consumption in UHF2 : 24 V
Power consumption : 230 VAC / 50 Hz / 7W
Operating temperature range : -20ºC +55ºC
Dimensions / Weight (in packaging) : 210 x 110 x 70 mm / 1.2 kg
