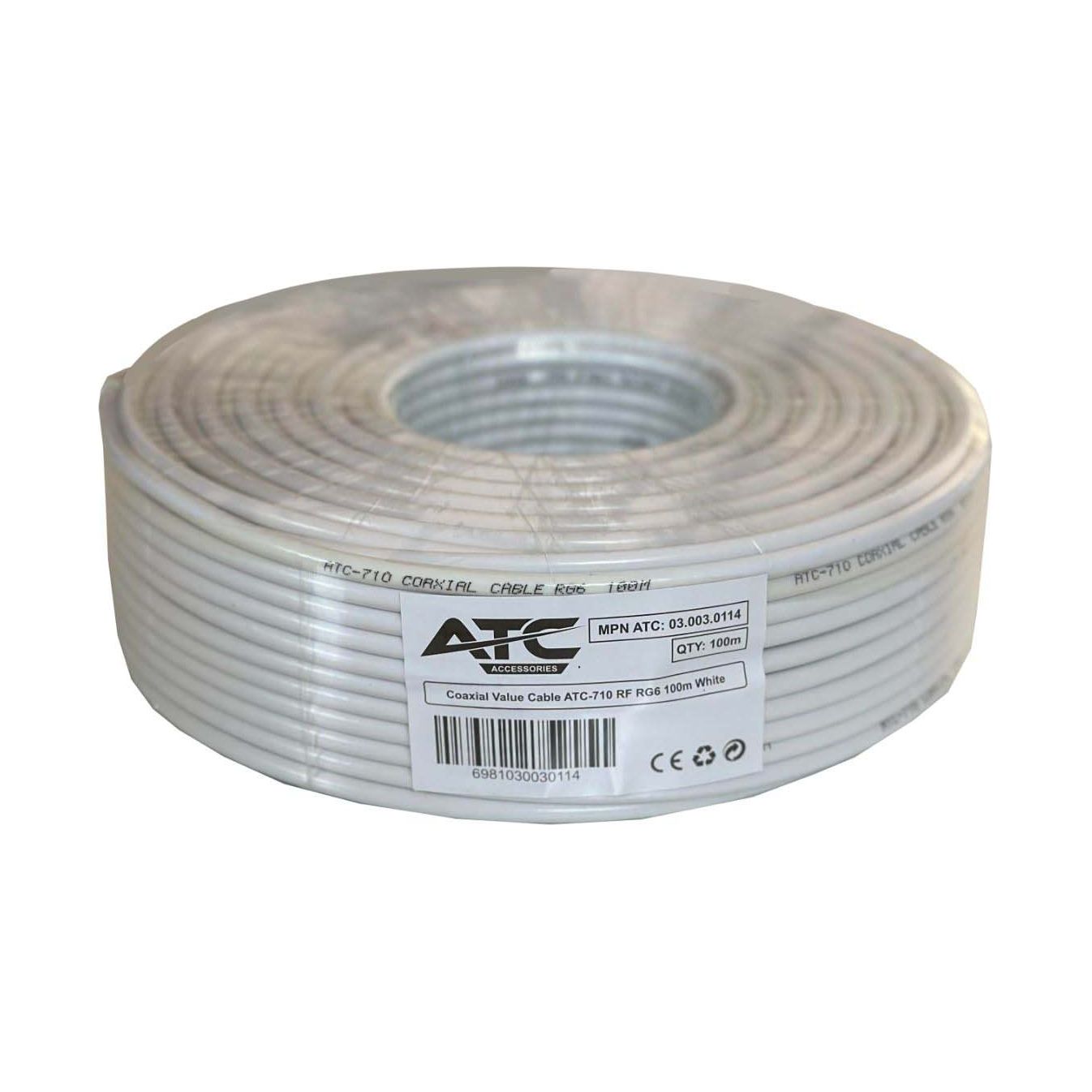

ATC RF Rotor ATC-710 Value RG6 100m

RG-6 Cable Technical Details

Type : RG-6
Inner Conductor : Tinned Copper (CCS), ø 1.02 mm
Dielectric : 4.8 ± 0.02 mm PE naturally foamed with nitrogen (N)
First Insulation : Al/PET foil, thickness 0.04 mm
Knitting : 48 wires x 0.12 mm, AL wire
Second Insulation : Al/PET foil, thickness 0.04 mm
PVC Outer Diameter : 6.8 mm, White
Characteristic Resistance : 75 ± 3 Ohm
Capacitance : 52 ± 2 pF/m
Optical Fiber Coverage : >= 75%
Application : Indoor Installation
Packaging : 3x100m
