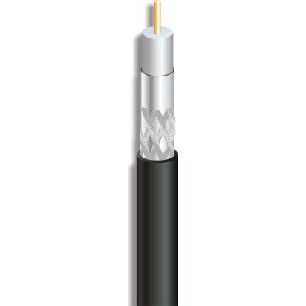

Ikusi RF Rotor CSL-611 RG11 CCSAL CA B200

Model: CSL-611
Reference Code: 2786
Standard: EN 50117-2-1
RG type: RG11

Application: Indoor & Outdoor
Euroclass CPR: DCA
Shield Class: Class A

Internal Conductor:

• Diameter: 1.63 mm
• Material: CCS (Copper-Coated Steel)

Dielectric:

• Diameter: 7.2 mm
• Material: PE (Polyethylene)

Shield:

• Material: Al/PET/Al
• Number of wires in the shield: 112

Outer Case:

• Diameter: 10.1 mm
• Material: LSZH (Low Smoke, Non-Toxic) Black

Resistance: 75 Ω

Attenuation / 100m:

• 5 MHz: 1.3 dB
• 50 MHz: 3.5 dB
• 200 MHz: 6.0 dB
• 300 MHz: 7.5 dB
• 470 MHz: 9.5 dB
• 862 MHz: 12.5 dB
• 1000 MHz: 14.5 dB
• 1750 MHz: 18.0 dB
• 2150 MHz: 20.0 dB

Dimensions (Packaging): 55.5 x 28 x 27.5 cm
Weight (Packaging): 18.5 kg

Spool Packaging: 1x 200 m
