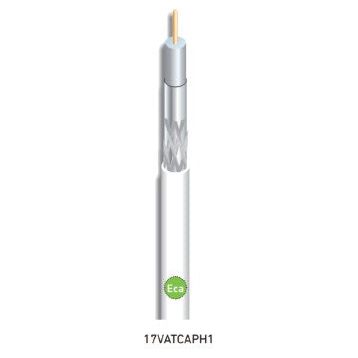

Ikusi RF Reel 17VATCAPH1 100m CU-STEEL

Standard: EN50117-2-4
CPR Euroclass: Eca
Class: B

Internal Conductor:
Diameter: 1.13 mm
Material: CCS (Copper-plated steel)

Dielectric:
Diameter: 4.8 mm
Material: PE (naturally foamed)

External Conductor:
Diameter: 5.4 mm
Material: Al (tape) + Al (braid)

Outer Case:
Diameter: 6.8 mm
Material: PVC (white)

Attenuation/100m:

• 50 MHz: 4.6 dB
• 200 MHz: 8.5 dB
• 300 MHz: 10.5 dB
• 470 MHz: 13.0 dB
• 862 MHz: 18.0 dB
• 1000 MHz: 19.5 dB
• 1750 MHz: 26.0 dB
• 2150 MHz: 29.8 dB

Power Supply Unit Spool: 100m
