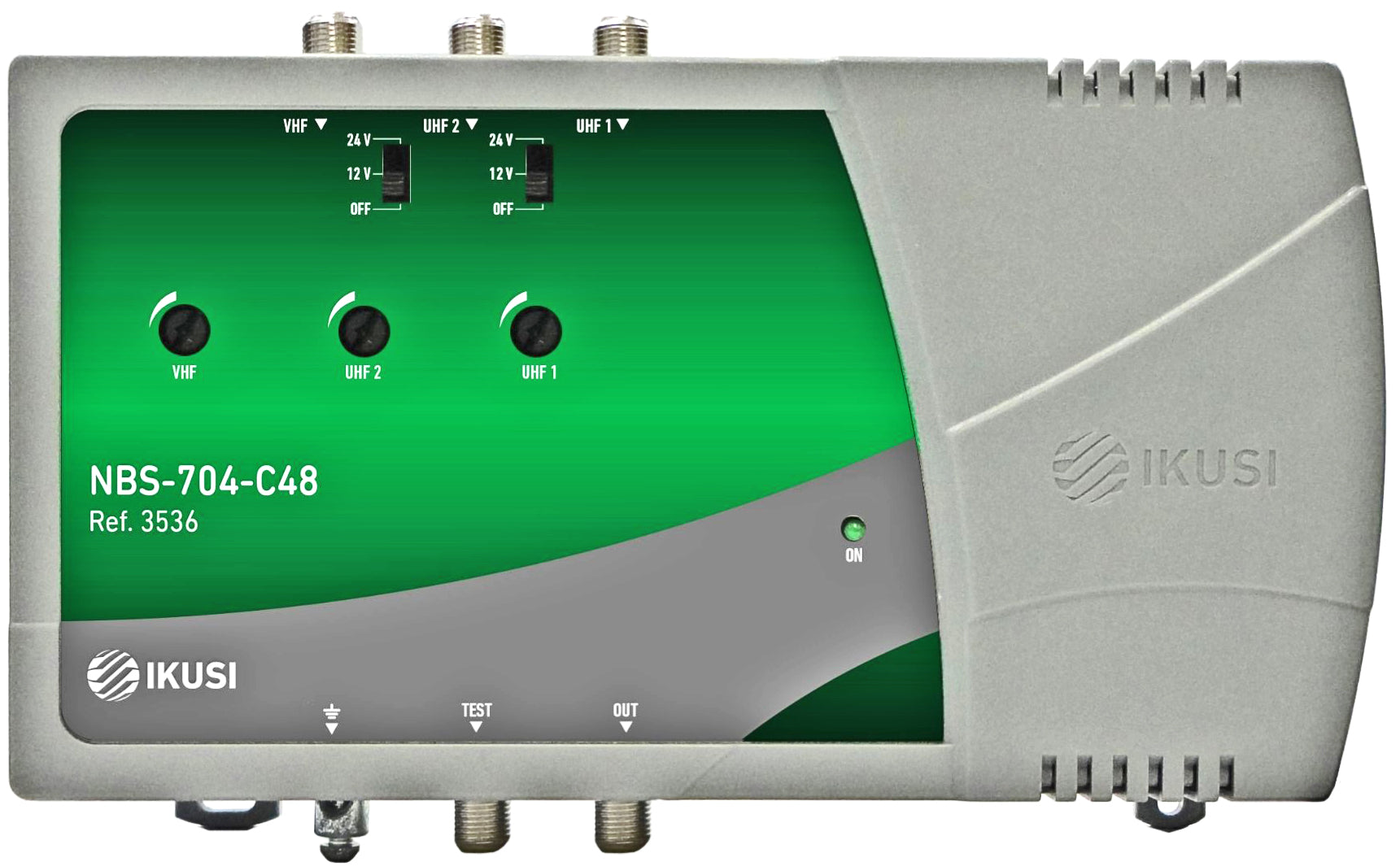

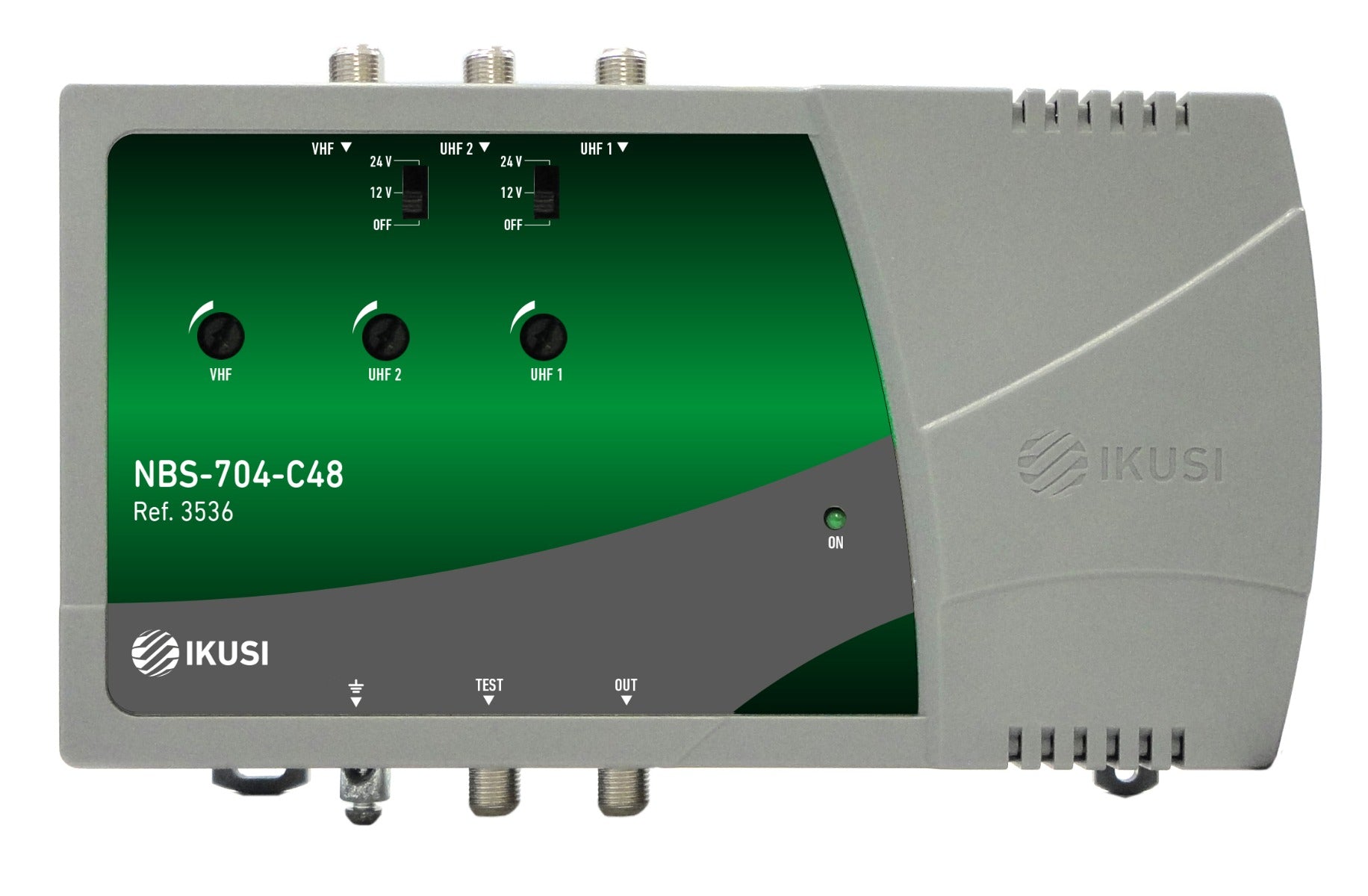

Ikusi Central Amplifier NBS 704-C48 AMP3

Model : NBS704-C48
Code Number : 3536
Frequency range : 88~694 MHz
Reinforcement :

• VHF (88~240 MHz): 22 dB
• UHF1 (470~694MHz): 35dB
• UHF2 (470~694MHz): 35dB

Response flatness : VHF-UHF1-UHF2: ±2 dB
Gain Adjustment : VHF-UHF1-UHF2: 0~15 dB
Noise : VHF-UHF1-UHF2: 7 dB
Maximum Output Level : 115 dBμV (DIN-45004B IMD -60 dB)
Return loss : Input/output 10 dB
Voltage/Current for mast preamplifiers : UHF1-UHF2: 12-24V / 100mA
Mains supply voltage : 110~240 VAC (+10% -15%)
Consumption : 7 Watts
Connectors : Input/Output: F - female
Output Control : 30dB Port
Nominal impedance : 75 Ohm for input and output
Dimensions : 210 x 140 x 50 mm
