Tecatel 40dB 403 LTE700 5G VHF/UHF Network Amplifier

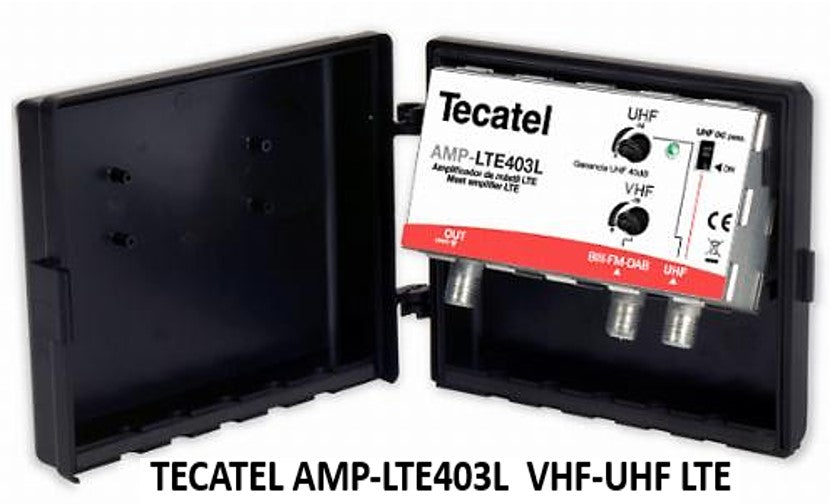

Tecatel AMP-LTE403L cell booster
TDT-UHF (470-690 MHz) mast amplifier with adjustable gain of 40dB (± 15dB) and adapted to the 2nd Digital Dividend with the LTE filter integrated to eliminate interference caused by 5G. The maximum output it offers is 112 dBμV and has only 3dB noise.

It has a consumption of 62 mA and allows the DC power diode to power the antenna if it is active.

The amplifier is protected by a black housing 145 x 110 x 45 mm for outdoor installation, on the DTT antenna mast.

Code : AMP-LTE404L
Inputs : 1 x UHF / 1 x VHF
Frequency Range : 47 - 230 MHz / 470 - 690 MHz
Gain : 30dB VHF / 40 dB UHF
Gain Adjustment : 15 dB
Output Level : 112 dBμV
Noise : 3 dB typ.
Connection : F Female
Power supply : 12 - 24 V
Power Consumption : 72 mA
Current Passage : Yes
Protection Index : IP23
Dimensions : 145 x 10 x 45 mm
Weight : 0.3 kg
