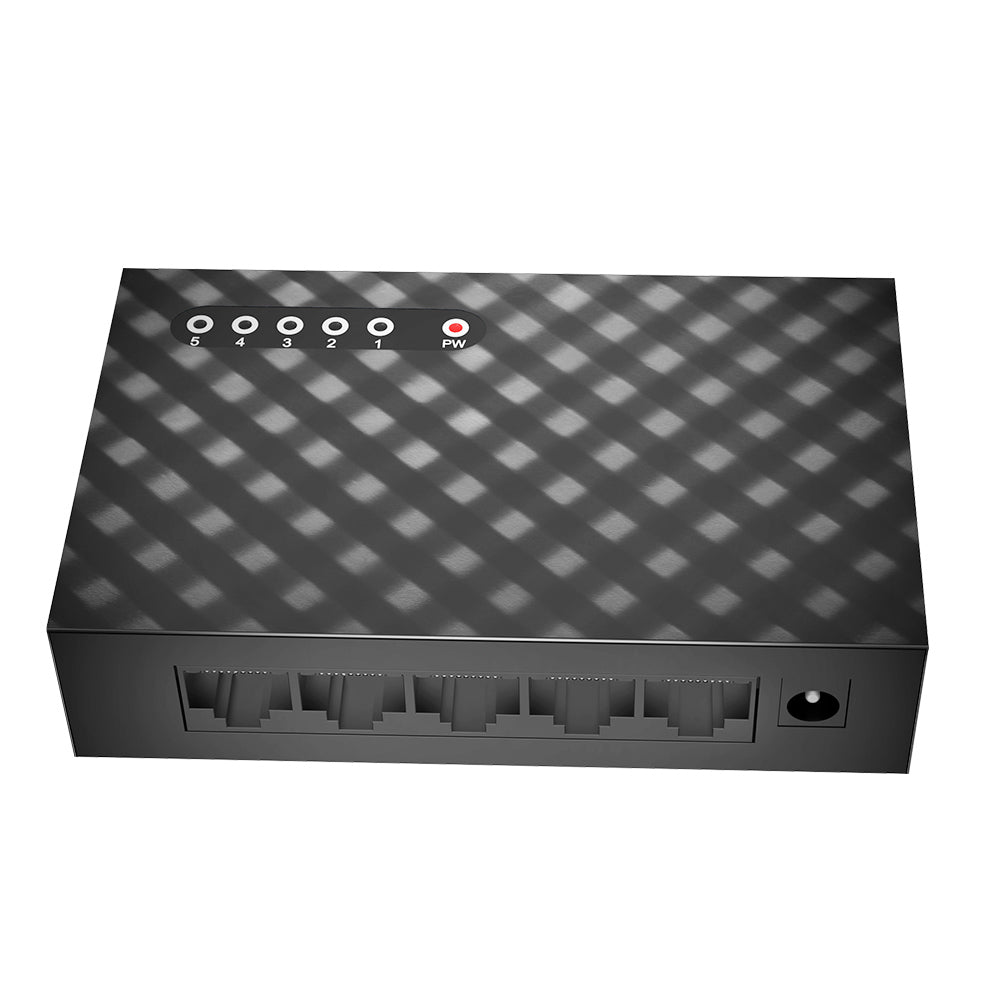

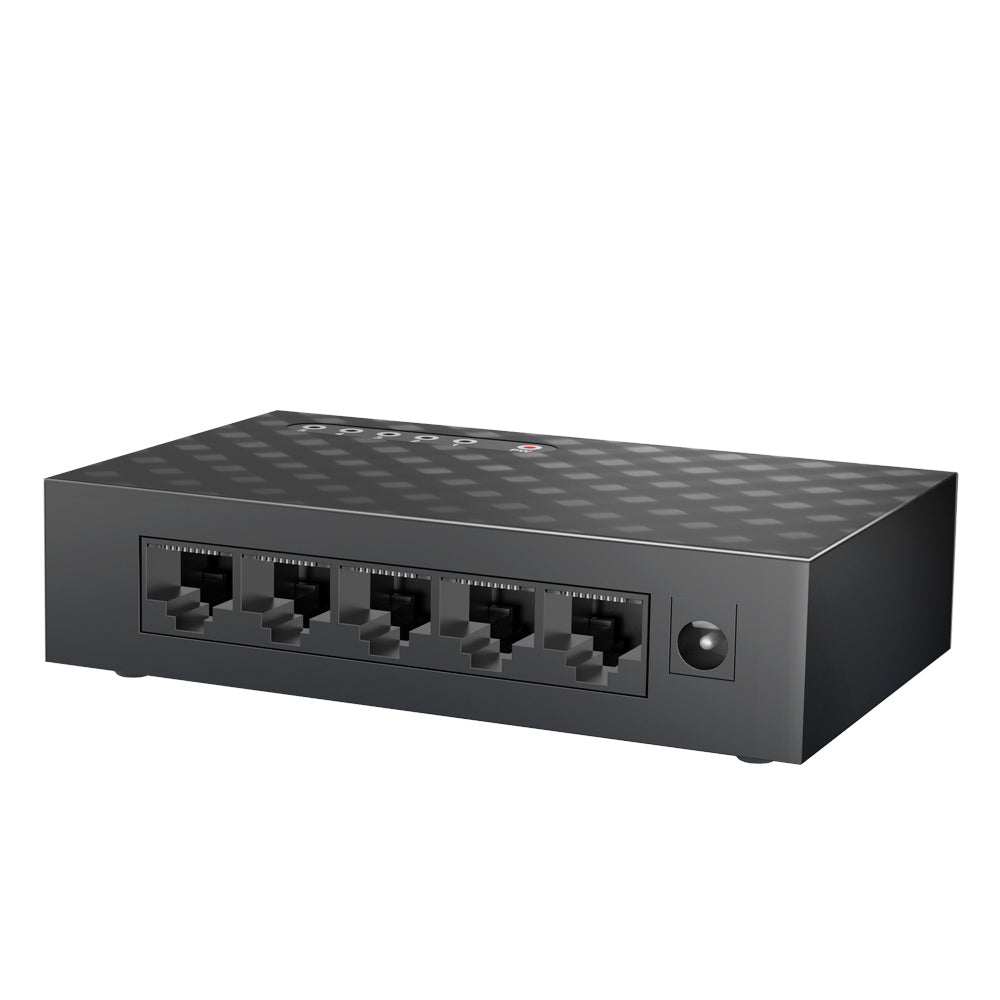

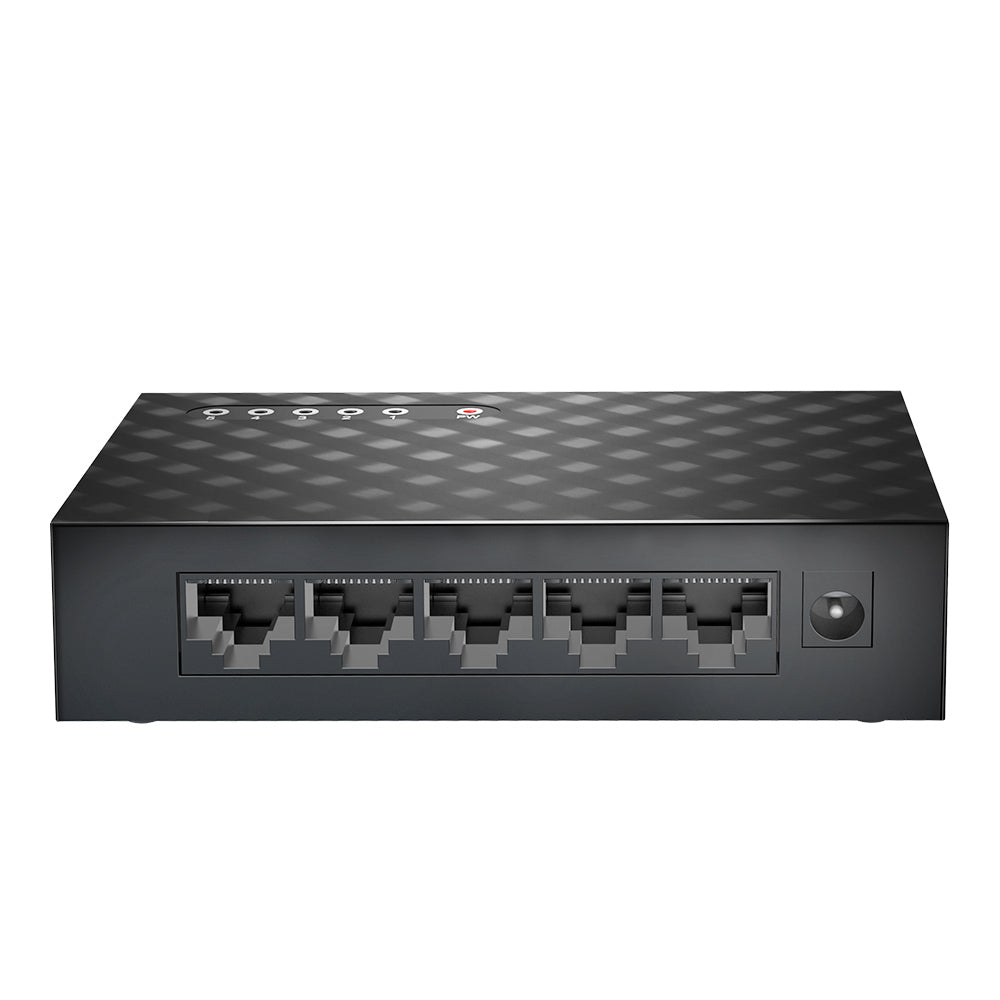

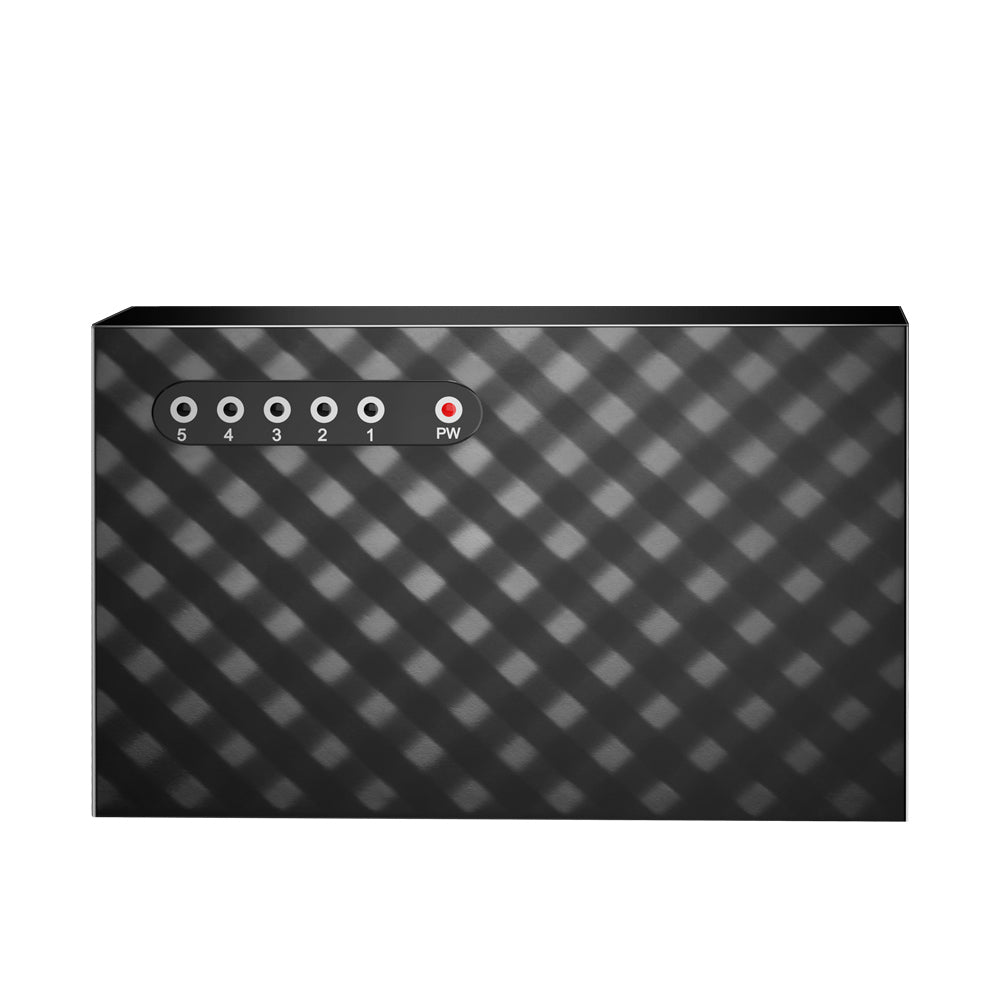

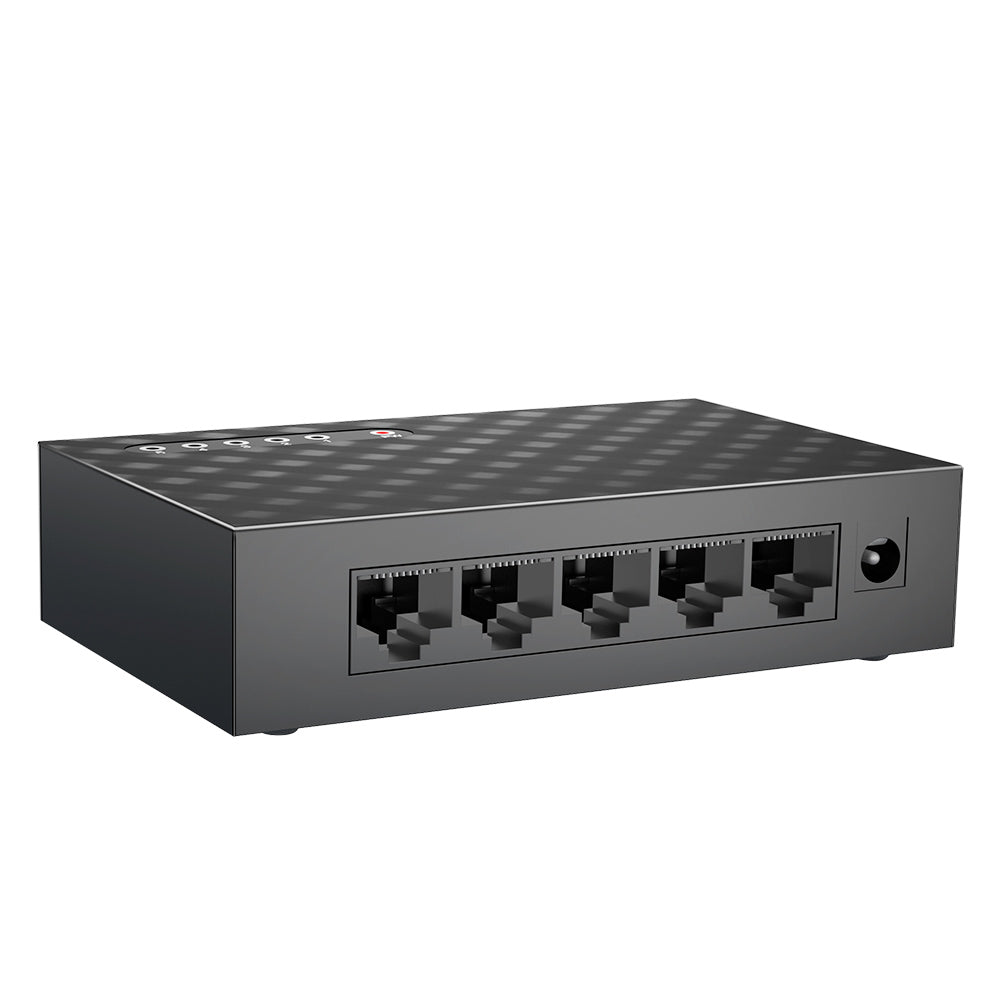

EDUP EP-SG7809 5 ports 10/100/1000M RJ45

10/100/1000Mbps Auto-Negotiation RJ45 Ports with Auto-MDI/MDIX
IEEE 802.3x flow control provides reliable data transfer.
Plug and play with no configuration required. The automatic features of this gigabit switch make installation plug and play and hassle-free. No configuration is required. Auto-negotiation on each port detects the connection speed of a network device (whether 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Standards and Protocols : IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Interface : 5 RJ45 10/100/1000Mbps Ports, Auto Negotiation / Auto MDI/MDIX
Forwarding Function : Store and forward
Network Media :
– 10BASE-T : Category 3, 4, 5 UTP cable (maximum 100 meters)
– 100BASE-TX/1000BASE-T : Category 5, 5e or above UTP cable (maximum 100 meters)
Power supply : External power adapter (Output: 5VDC/1A )
Dimensions : 100 x 70 x 25 mm
Weight : 76g
LED : Power , Link/Act
Fanless : Yes

Performance
Switching Capacity : 10 Gbps
Packet Filtering/Forwarding Rate :
– 1,488,000 pps for 1000M
– 148,800 pps for 100M
– 14,880 pps for 10M
MAC Address Table : 2K

Environment
– Operating temperature: 0°C~40°C (32°F104°F)
– Storage temperature: -40°C~70°C (-40°F158°F)
– Operating humidity: 10%~90% RH non-condensing
– Storage humidity: 5%~90% RH non-condensing
