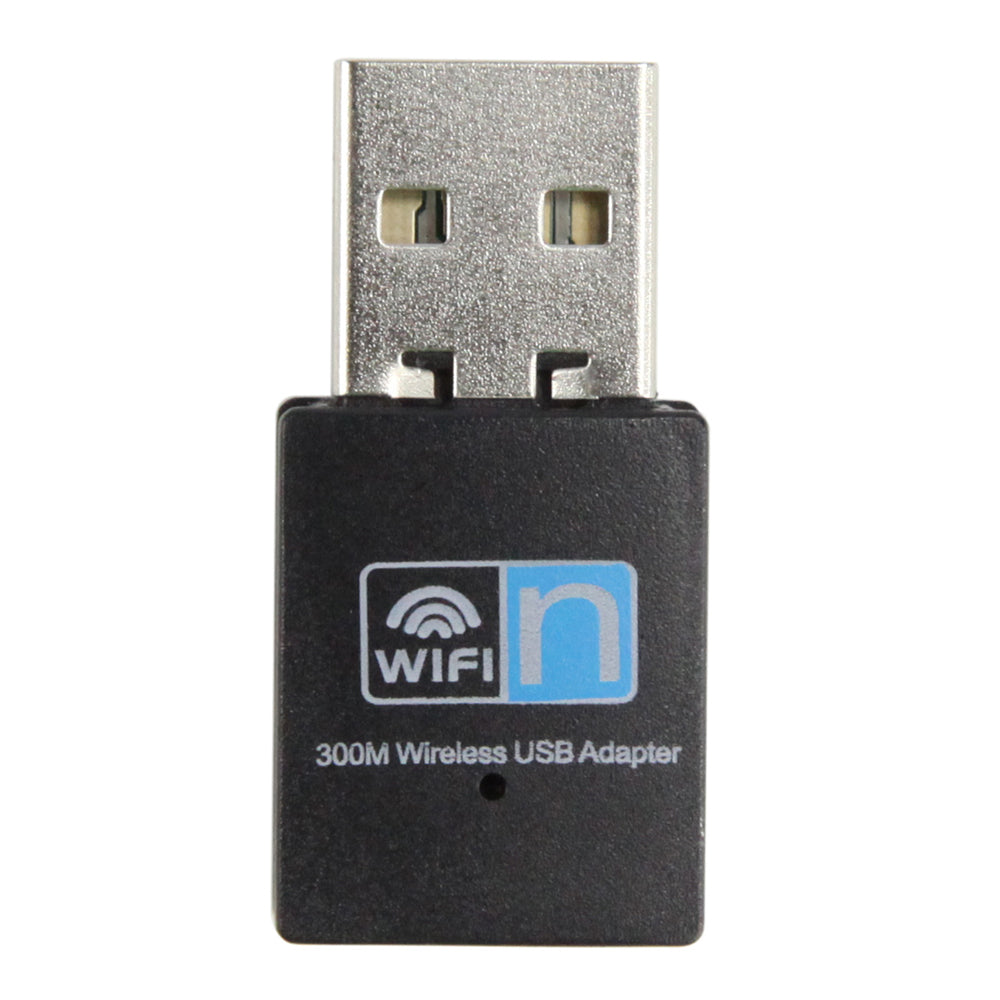

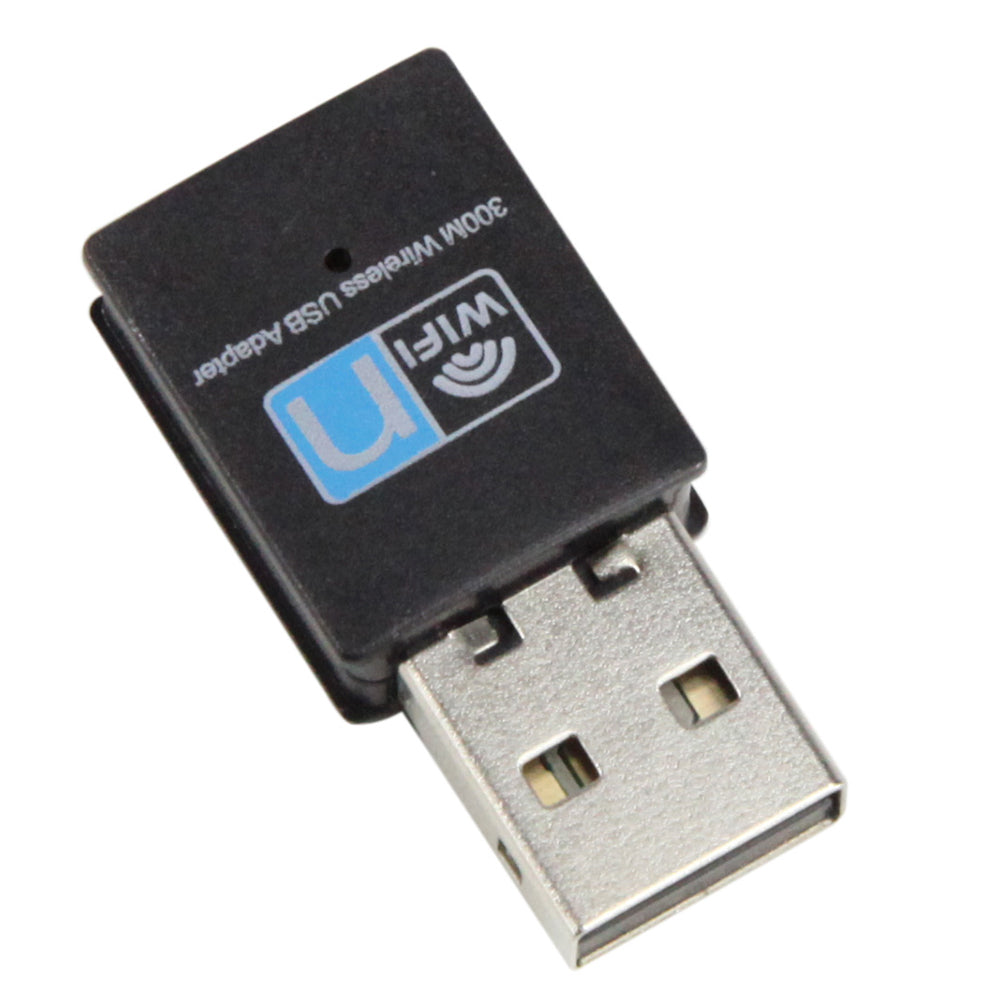

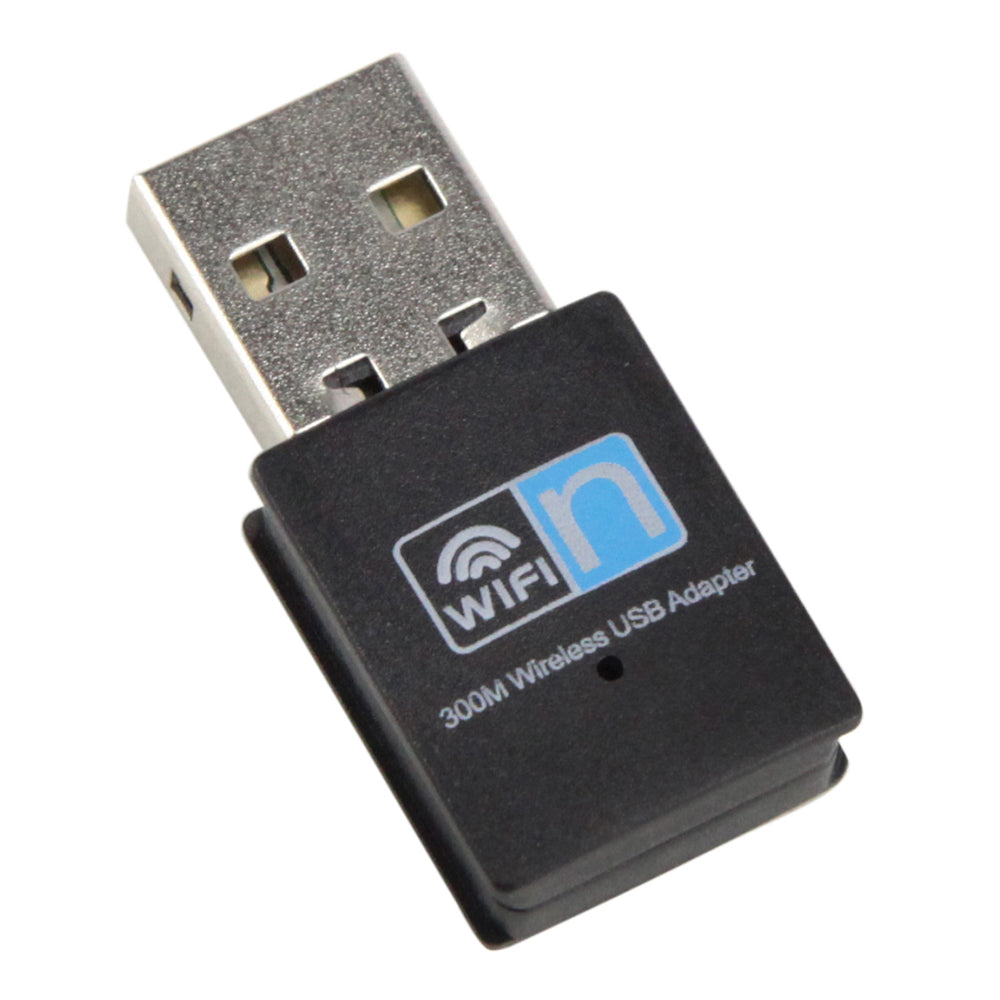

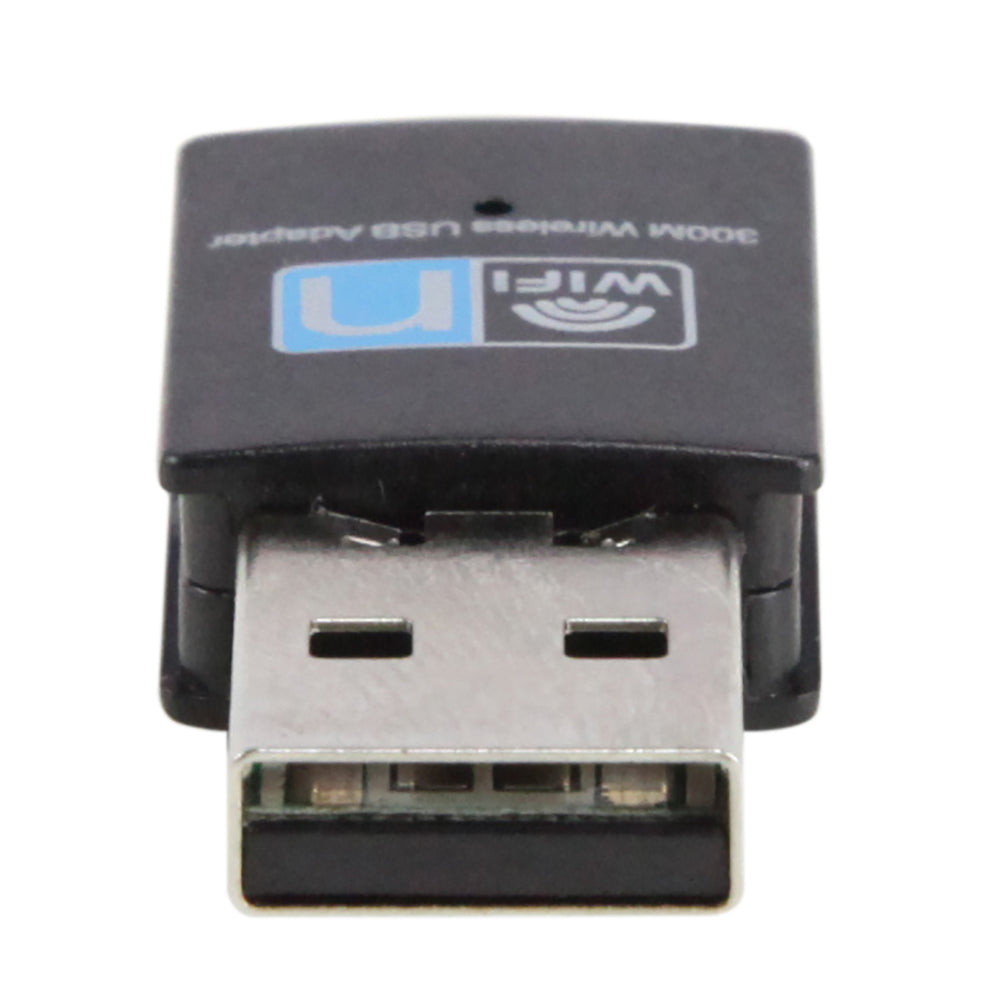

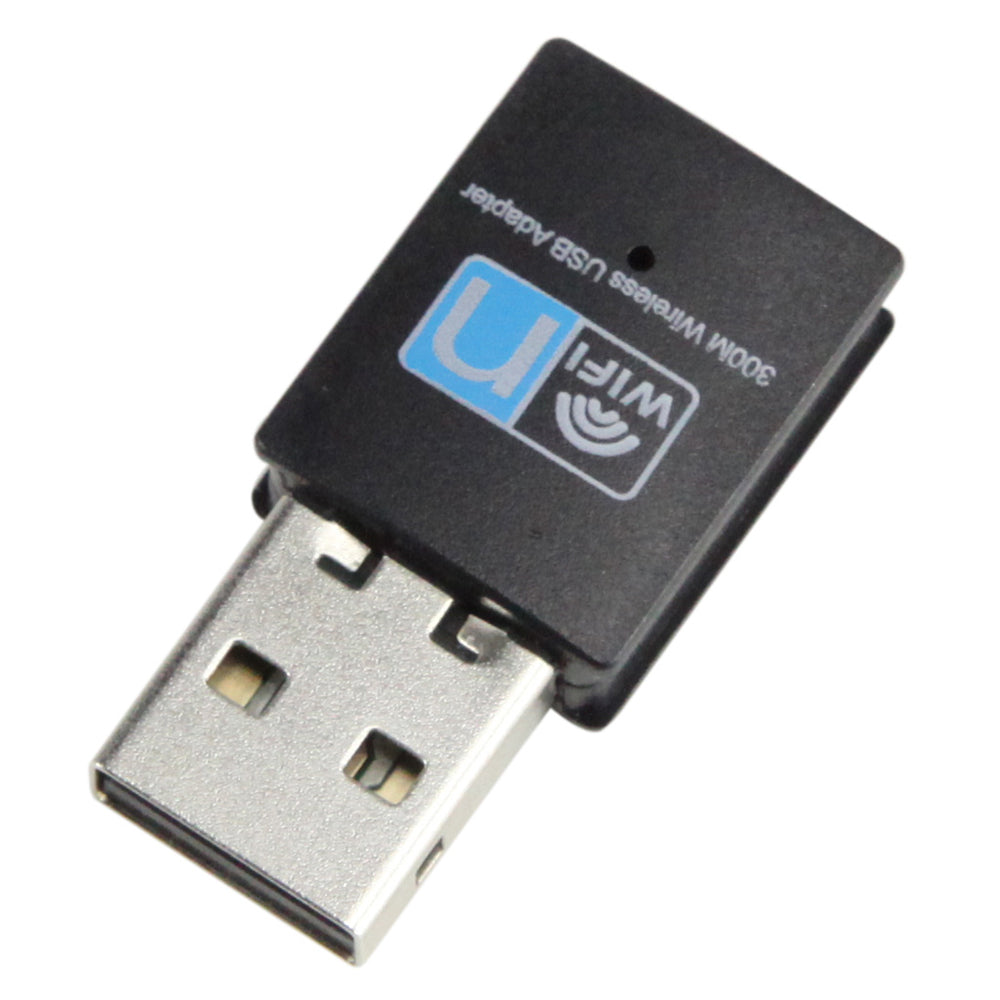

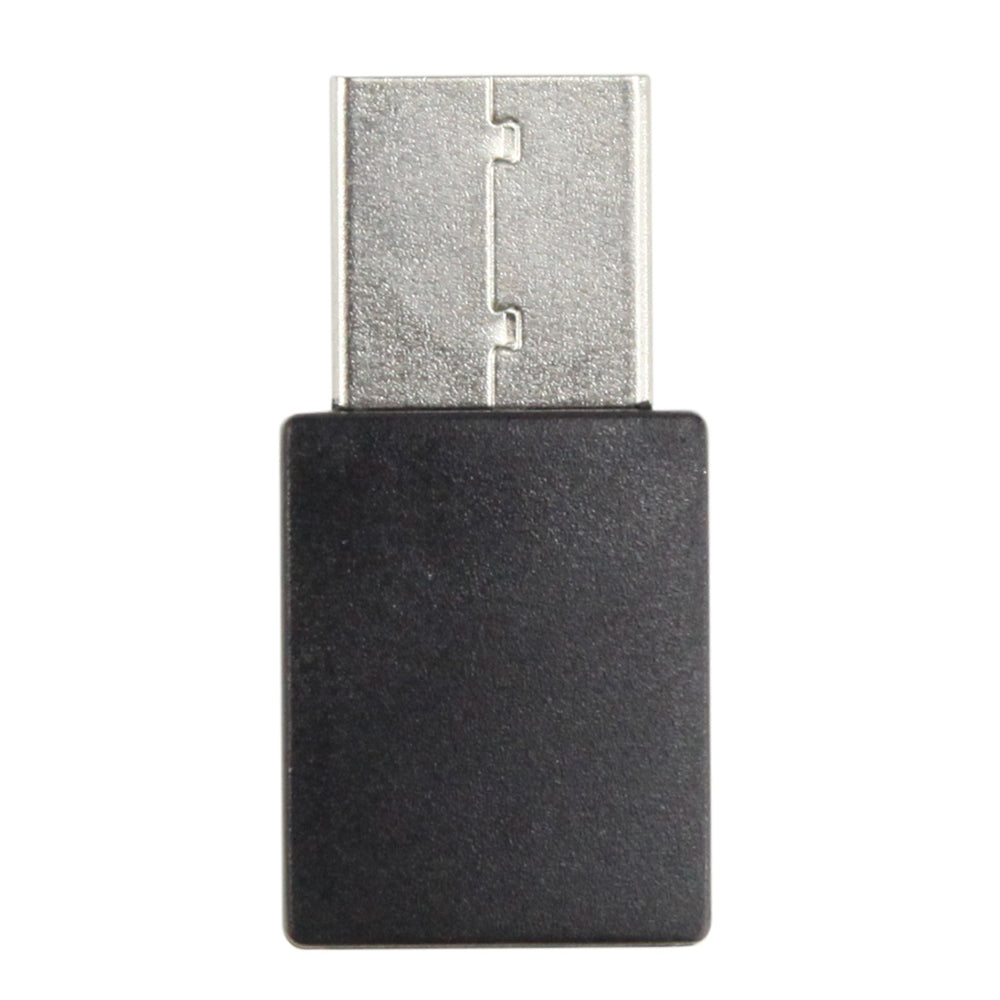

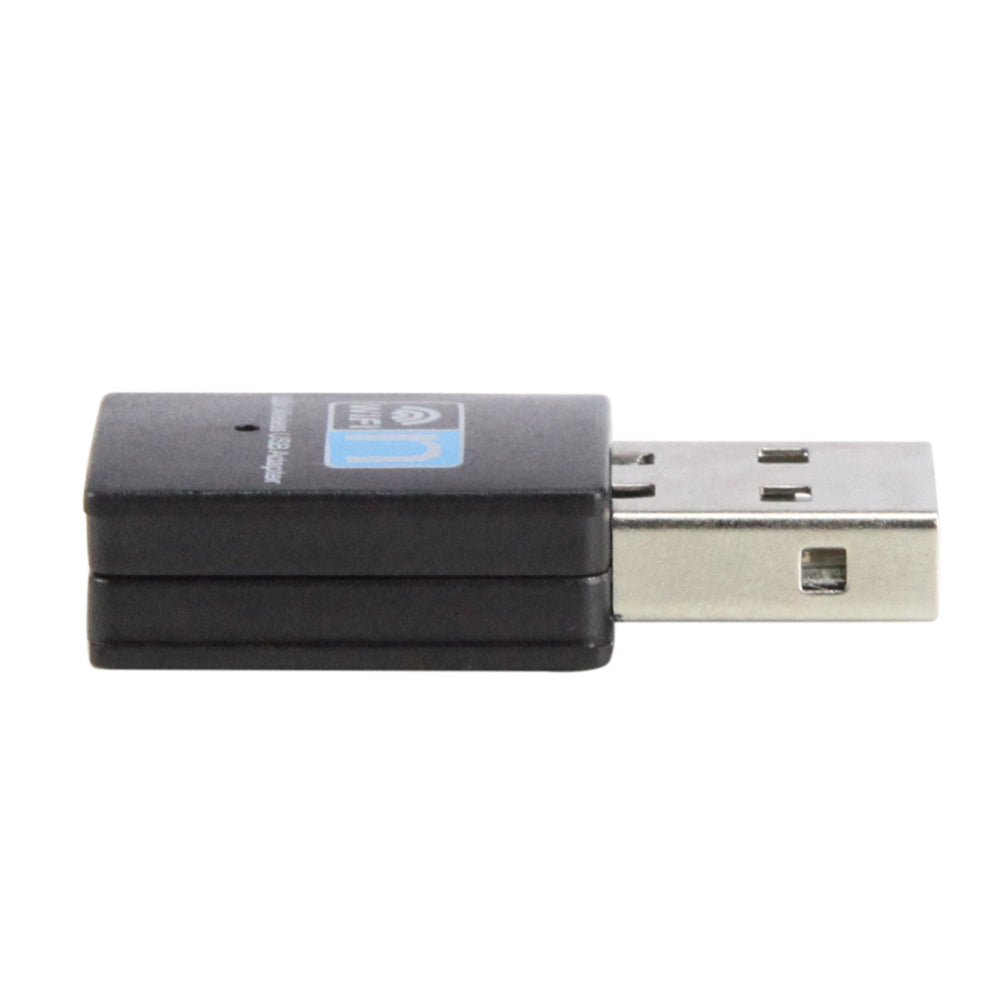

EDUP WiFi Adapter EP-N1557ES 300Mbps USB

Features

MIMO technology improves data throughput and range of existing 802.11b/g products
Add high-speed Wireless-N (draft 802.11n) Internet access to any USB-enabled computer
Download music and movies, surf the Internet and e-mail up to 5 times faster than previous generation wireless networks ( Wireless 802.11g )
Offers greater coverage than Wireless-G networks for internet access throughout your home or office
Works with older Wireless-G and Wireless-B networks
Wi-Fi Protected Setup (WPS) simplifies setup and operation
Operating distance up to 300 feet indoors and up to 900 feet outdoors
Data transfer speed up to 300 Mbps
Supports USB 2.0 interface, backward compatible with USB 1.1 and 1.2
Enhanced WEP and WPA wireless security for protected Internet access
64-bit / 128-bit WEP (Wired Equivalent Privacy), TKIP , AES 2,400 GHz ISM
Frequency band modulation method: QPSK / BPSK / 16-QAM / 64-QAM
Supports Ad Hoc and Infrastructure modes

Specifications

Wireless standards
IEEE 802.11n (draft)
IEEE 802.11g
IEEE 802.11b

Chipset
Realtek RTL8192EU

Host interface
High speed USB2.0/1.1 interface

Wireless signal rates with automatic fallback
802.11n: up to 300Mbps (Dynamic)
802.11g: up to 54Mbps (Dynamic)
802.11b: up to 11Mbps (Dynamic)

Frequency Range
2.4GHz-2.4835GHz

Wireless transmission power
18dBm (EIRP)

Configuration type
DBPSK, DQPSK, CCK, OFDM

Receiver sensitivity
270M: -68dBm @ 10% PER
54M: -68dBm @ 10% PER
11M: -85dBm @ 10% PER

Working mode
Ad-Hoc , Infrastructure , soft AP

Wireless security
WPS , 64/128-bit WEP , WPA/WPAS , WPA-PSK/WPA2-PSK (TKIP/AES)

Operating System Support
Windows XP/VISTA/Win7/Win8/Win10 , Mac OS 10.4~10.12 , Linux Kernel 2.6.18~3.9 , Android 1.6~2.3 and 4.0~4.2

Interface
USB2.0 Hi-Speed ​​connector

Antenna type
Internal Omni-directional PIFA Antenna

Environment
Operating temperature: 0°C to 40°C
Storage temperature: -40°C to 70°C
Operating humidity: 10% ~ 90% (non-condensing)
Storage humidity: 5% ~ 95% (non-condensing)
