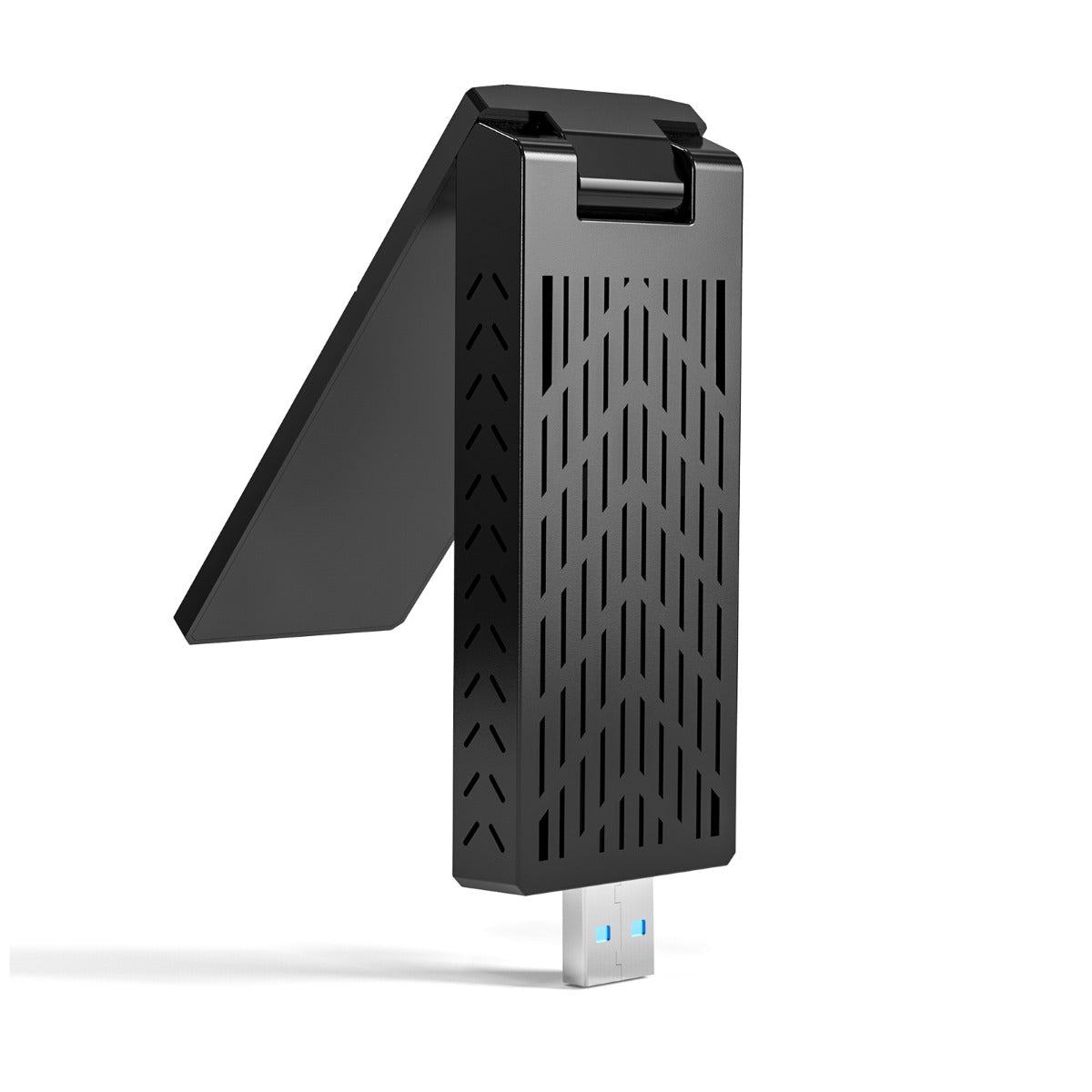

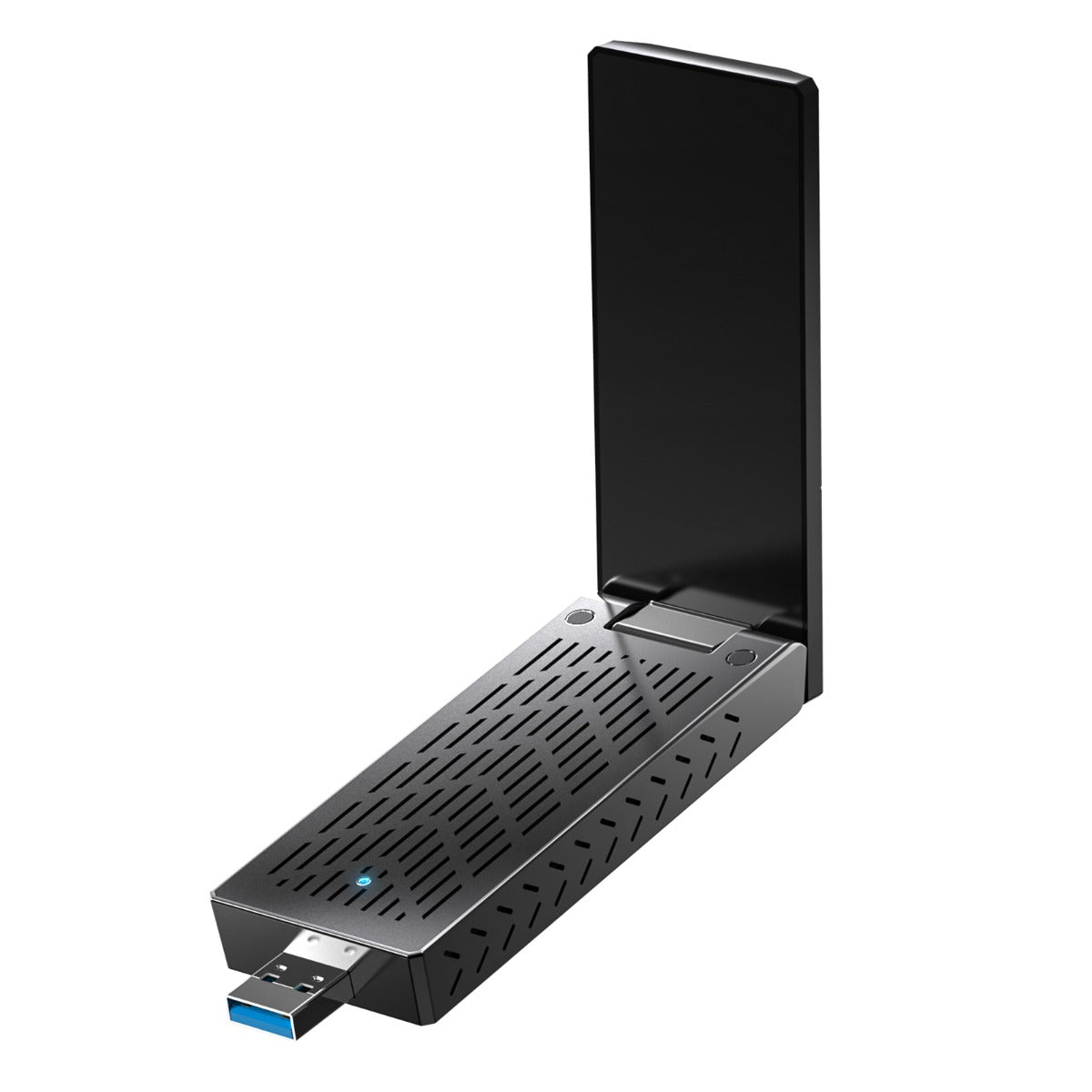

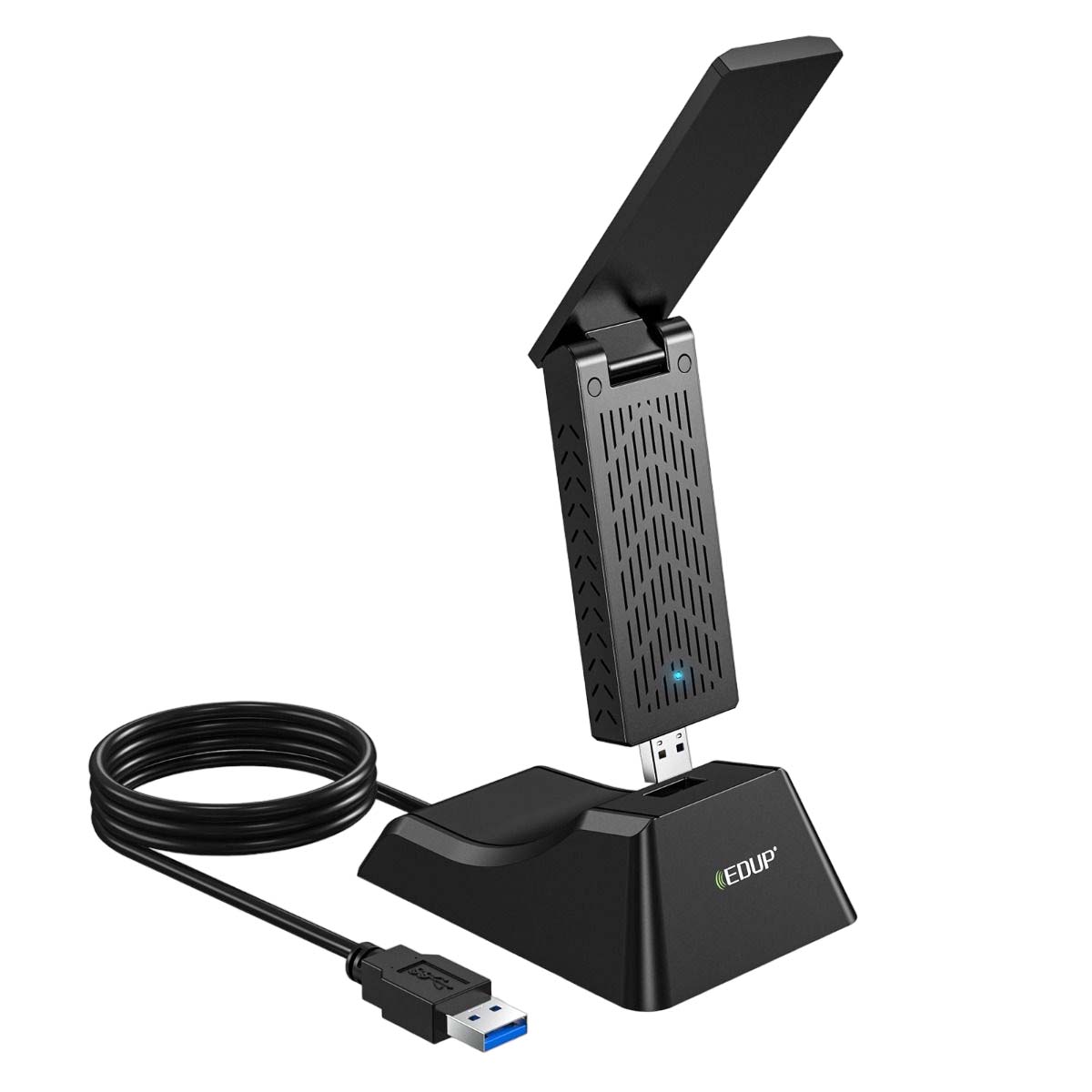

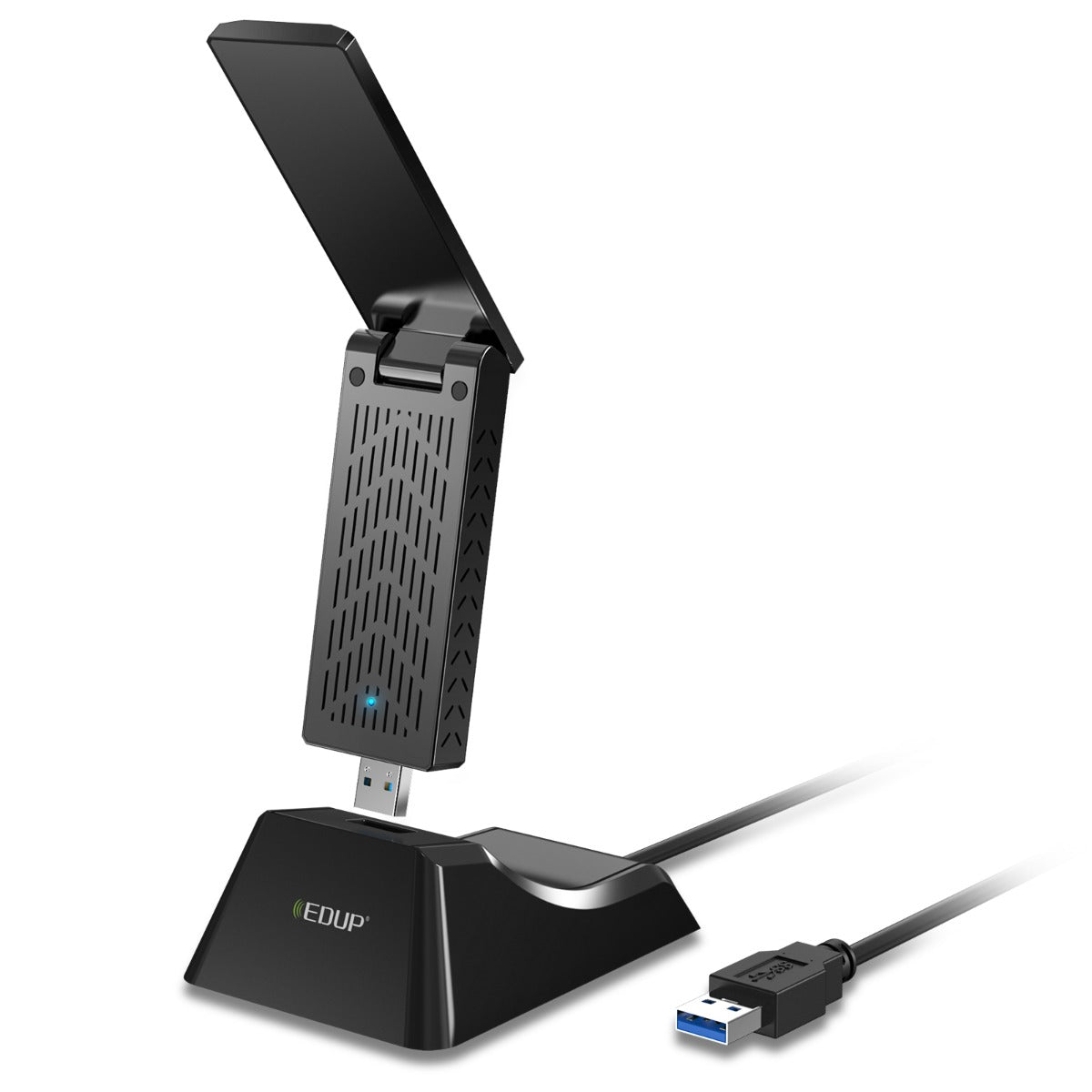

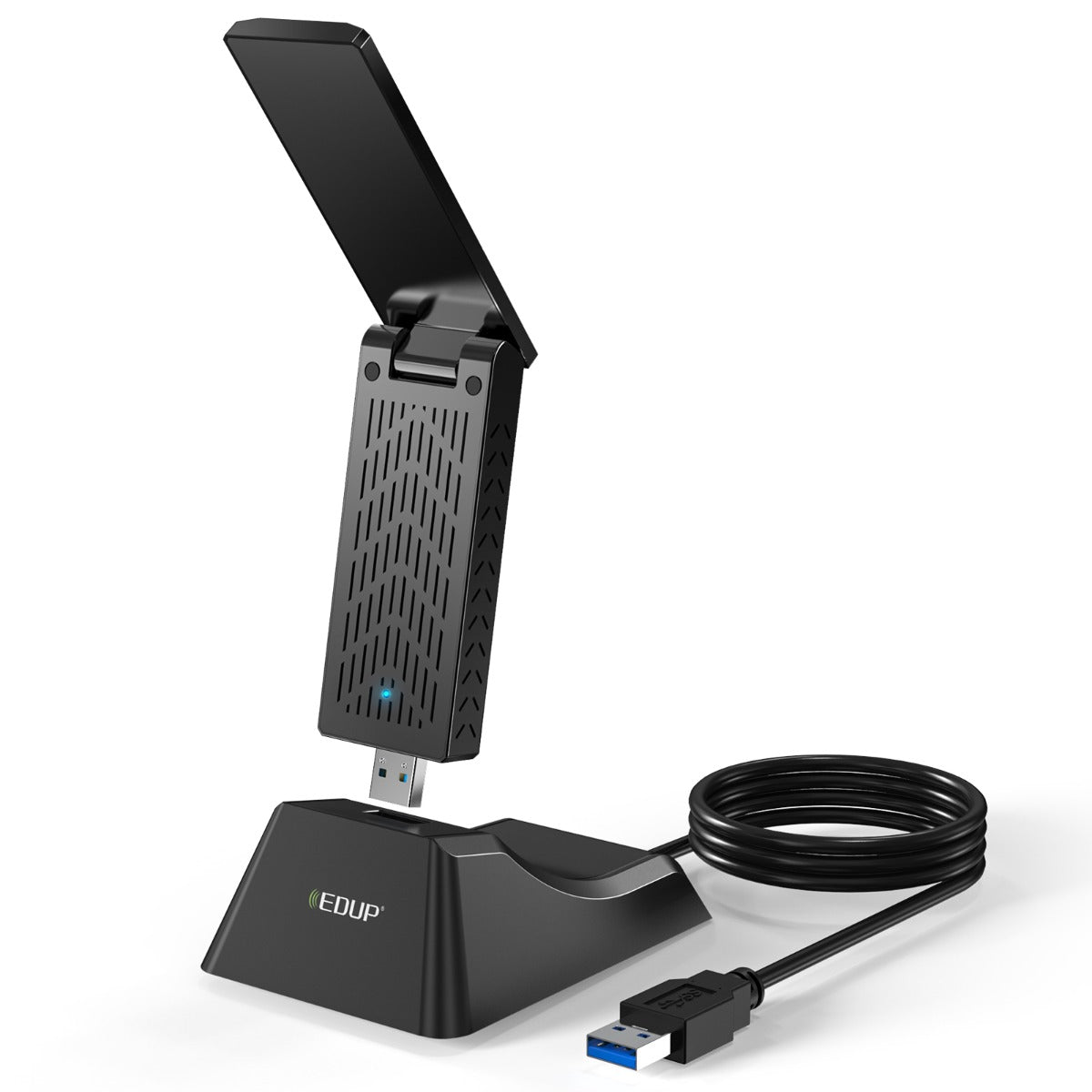

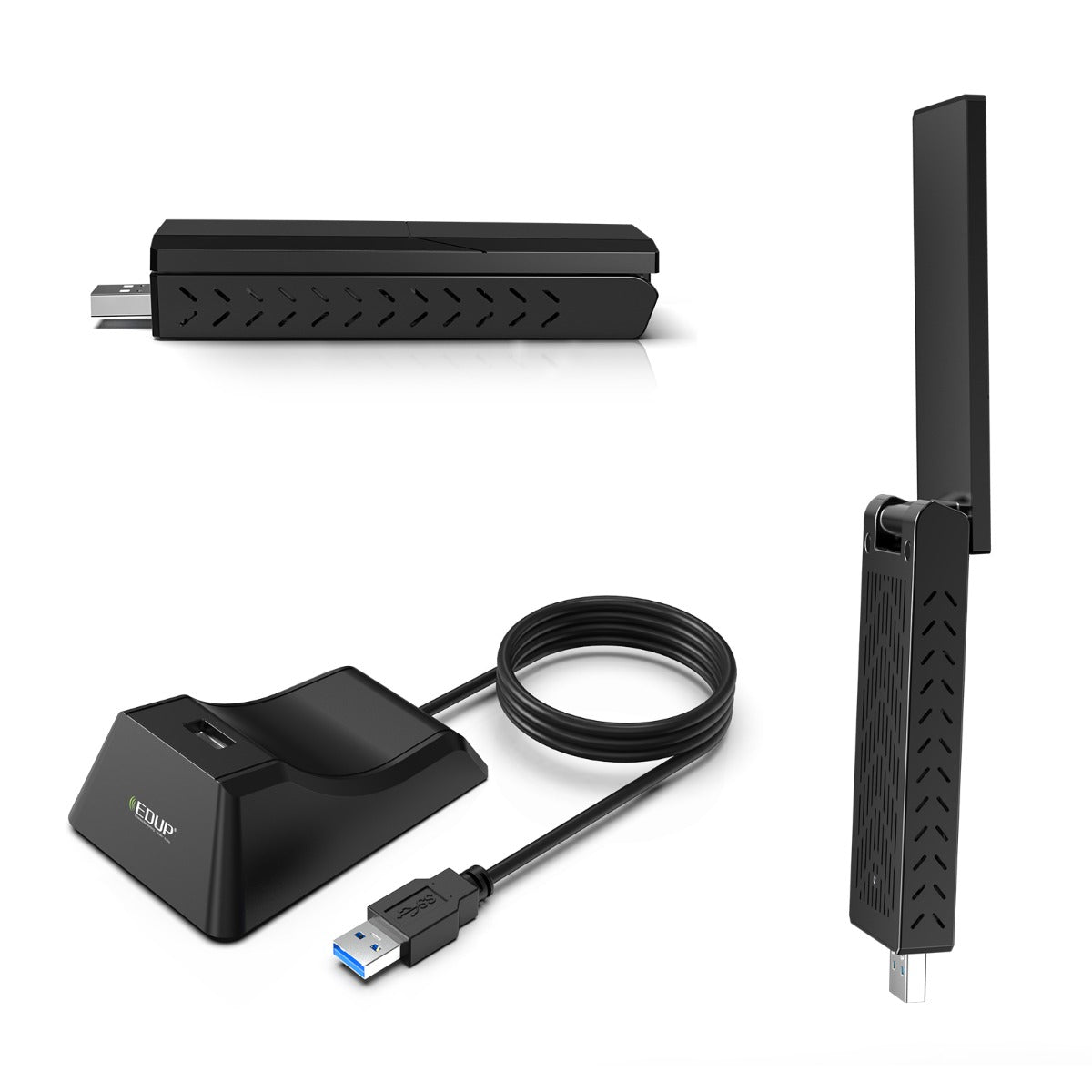

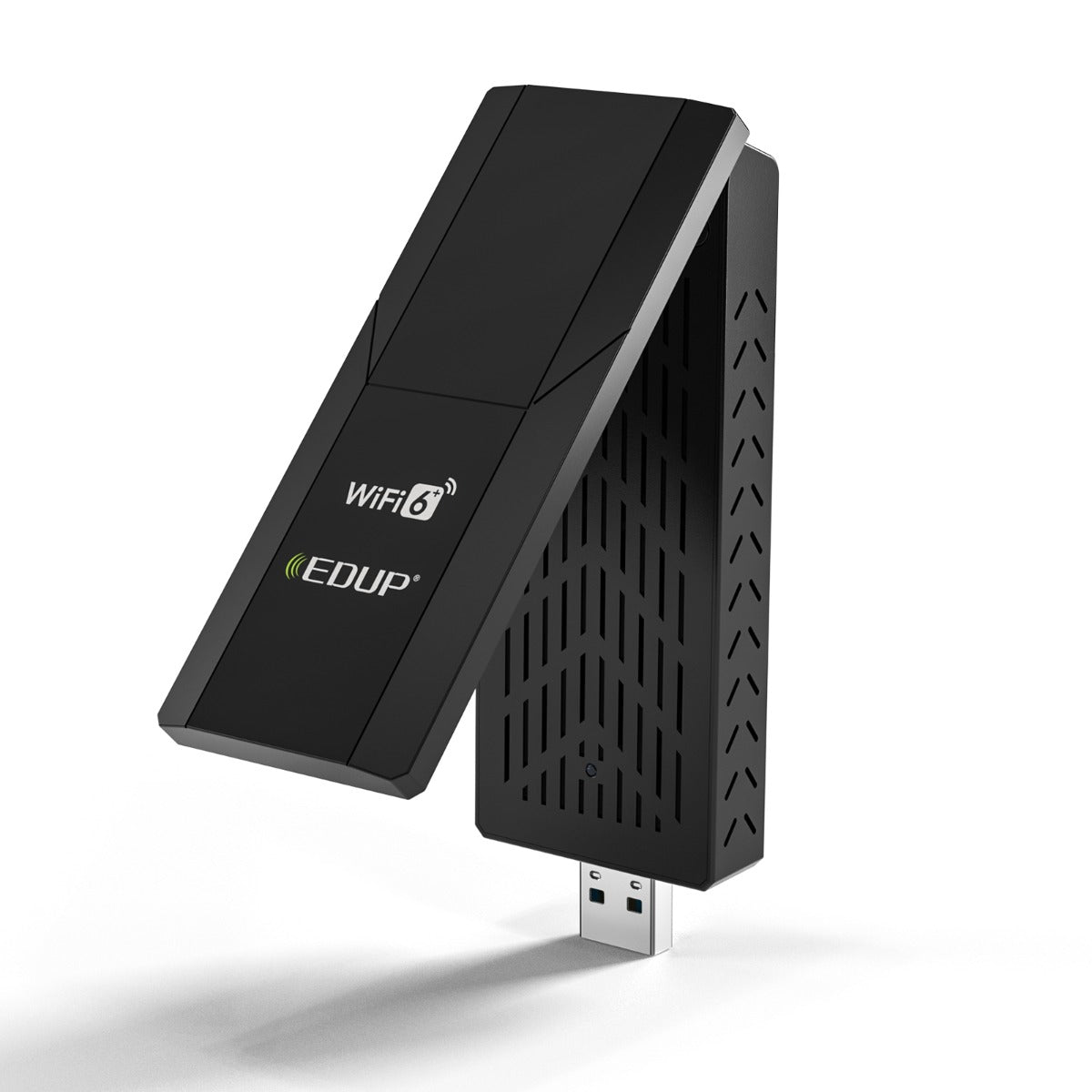

EDUP EP-AX1675GS WiFi 6 USB Adapter

Specifications

Wi-Fi 6:
It supports the Wi-Fi 6 standard, providing high speeds and increased network performance.

Wireless transmission rate:
1800 Mbps total, with 574 Mbps on the 2.4 GHz band and 1200 Mbps on the 5 GHz band.

Dual band frequency:
2.4 GHz with a speed of up to 574 Mbps and 5 GHz with a speed of up to 1200 Mbps.

Driver:
Includes CD or online driver download.

Integrated FEM module (PA+ LNA):
The built-in module amplifies the signal and increases the signal reception range.

High data rate 1024-QAM modulation:
It provides strong and consistent Wi-Fi to fully utilize the capabilities of your Wi-Fi 6 router.

Supports Windows 10/11:
Compatible with Windows 10 and Windows 11.

Compatibility with 802.11ax/ac/a/b/g/n devices:
Seamlessly compatible with many Wi-Fi devices, covering the most popular standards.

Features

Chipset:
Realtek RTL8832CU

Interface:
USB 3.0 Hi-Speed ​​connector

Wireless speed:

• 11n: Up to 573.5 Mbps
• AX: Up to 2402 Mbps

Frequency Range:
2.4GHz, 5.8GHz, and 6GHz

Wireless transmission power:
20 dBm (MAX EIRP)

Formation Technique:
OFDM/CCK/16-QAM/64-QAM/1024-QAM

Working Mode:
Ad-Hoc / Infrastructure

Wireless security:
64/128 bits WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES), WPA3

Operating temperature:

• Operation: -20℃ to 70℃
• Storage: -40℃ to 90℃

Moisture:

• Operating: 5% to 95% (non-condensing)
• Storage: Maximum 90% (non-condensing)

Operating system support:
Windows 10 / Windows 11

Dimensions (H x W x D):
88.5 x 29.5 x 14.5 mm
