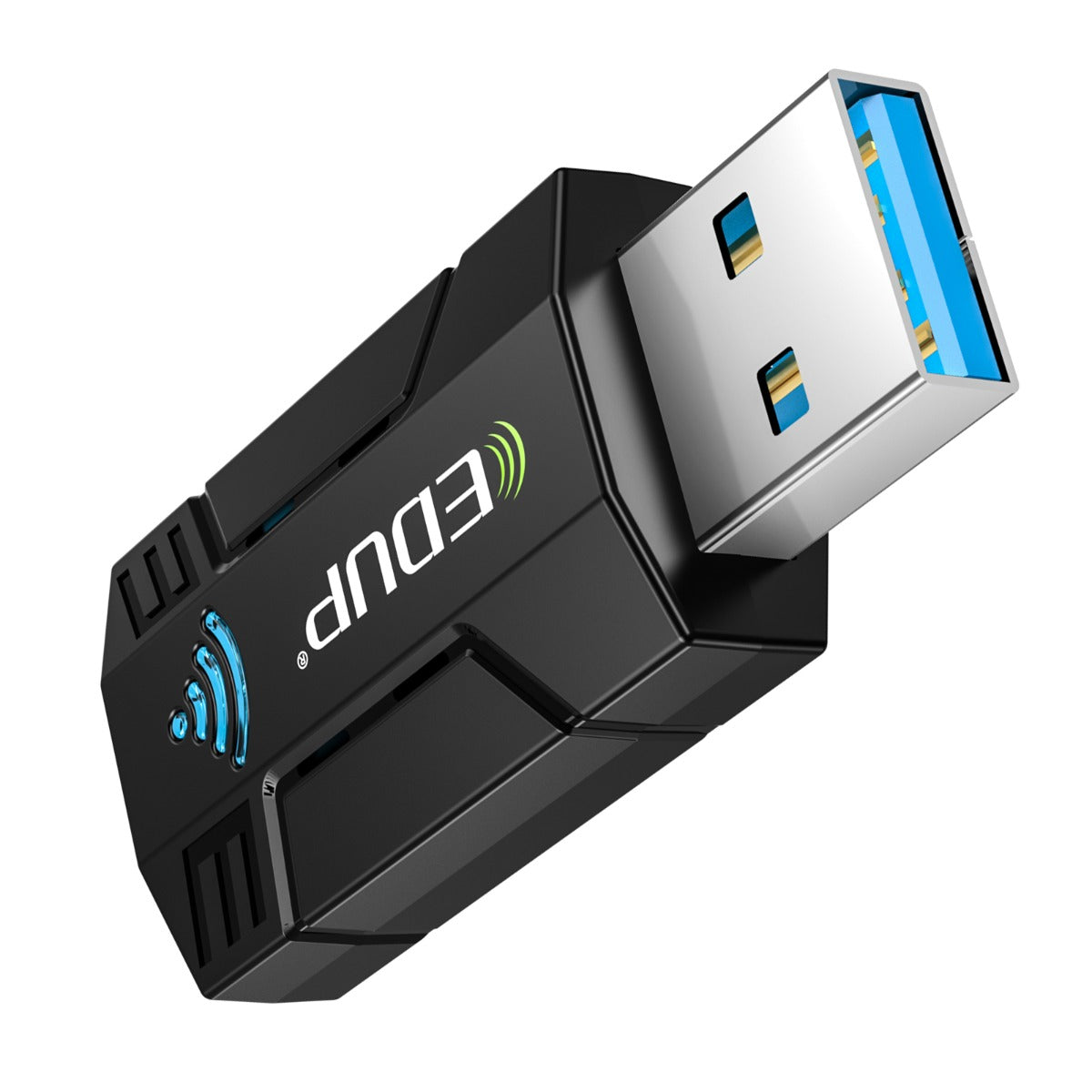

EDUP WiFi Adapter EP-AC1689GS AC1300 USB

Features

USB 3.0 support
Frequency support 20MHz/40MHz/80MHz
5G compatible with IEEE 802.11ac and IEEE 802.11a standards
2.4G compatible with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standard
Detect network and automatically change transmission speed
WPA/WPA2/WPA-WPA2/802.1x and 64/128 bit WEP encryption support
Dual-band 2.4G and 5G support
Wi-Fi Direct support
Multiple BSSID support
QoS-WMM, WMM-PS support
WPS support: PIN, PBC
Support Infrastructure, Ad-Hoc and Soft AP three modes
Cisco CCX Support
Low power management
Supported operating system : Windows, MacOS, Linux

Specifications

Wireless standards
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
IEEE 802.11ac
IEEE 802.11a

Transmission speed
802.11b: 1/2/5.5/11Mbps
802.11g: 6/9/12/18/24/36/48/54Mbps
802.11n: up to 400Mbps
802.11ac: up to 867Mbps

Frequency Range
2.4GHz ~ 2.4835GHz
5.125GHz ~ 5.825GHz

Work channel
1 ~ 14 (2.4G)
36 ~ 165 (5G)

Workforce
18dBm (Typical)

Sensitivity
11n: -68dBm@200M
11g: -69dBm@54M
11b: -85dBm@11M
11ac: -59dBm@867M

Wireless security
WPA/WPA2/WPA-WPA2/802.1x
64/128-bit WEP
WPS (PIN, PBC)

Operating System Support
Windows XP/Vista/Win7/Win8.1/Win10/Mac OS/Linux

Host interface
USB 3.0

LED (BLUE)
Link/Act

Environment

Operating temperature : 0℃~45℃
Storage temperature : -20℃~75℃
Operating humidity : 10% ~ 90% RH (non-condensing)
Storage Humidity : 5% ~ 95% RH (non-condensing)
