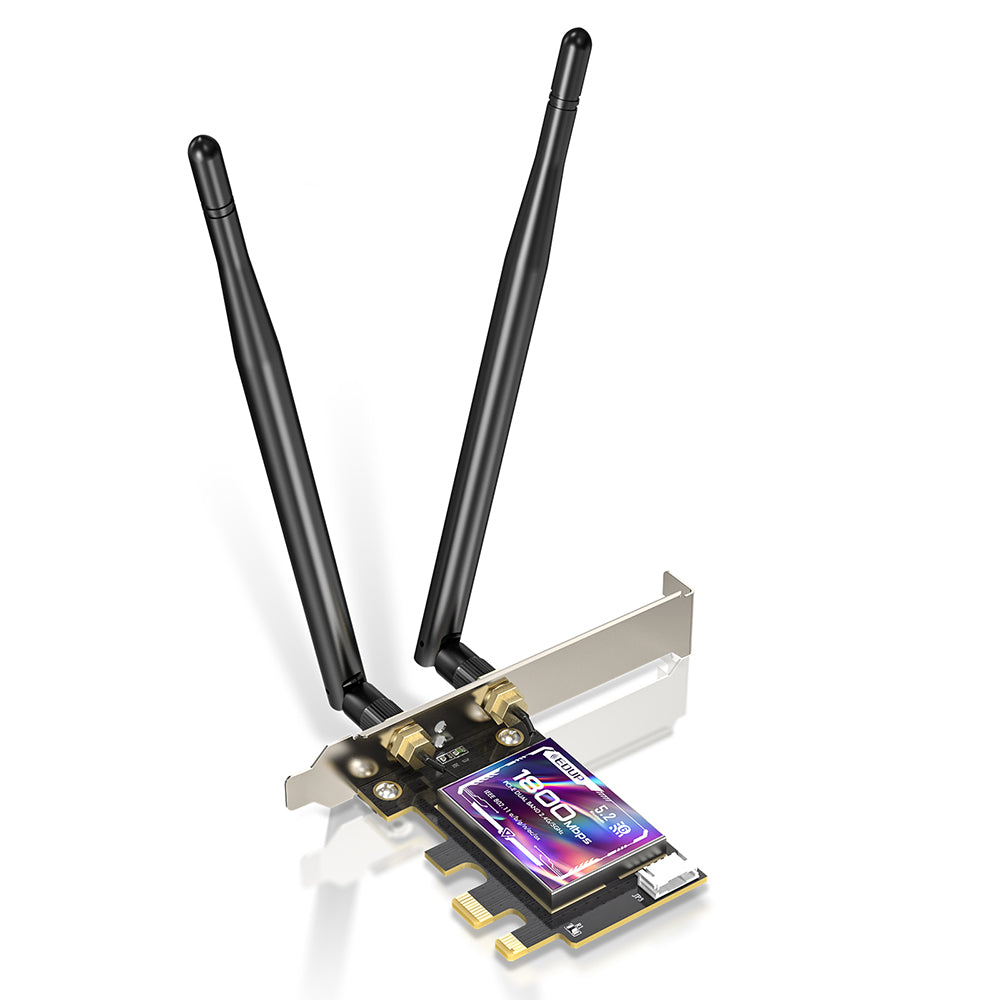

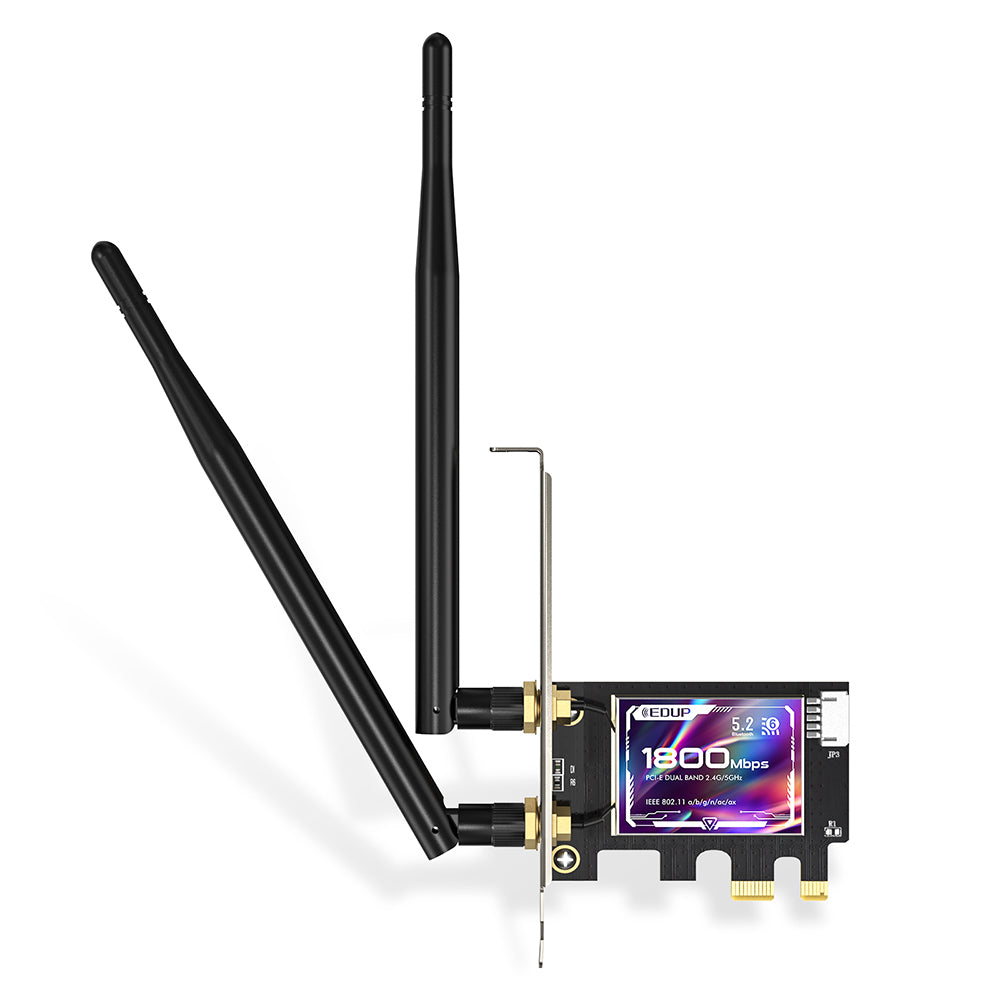

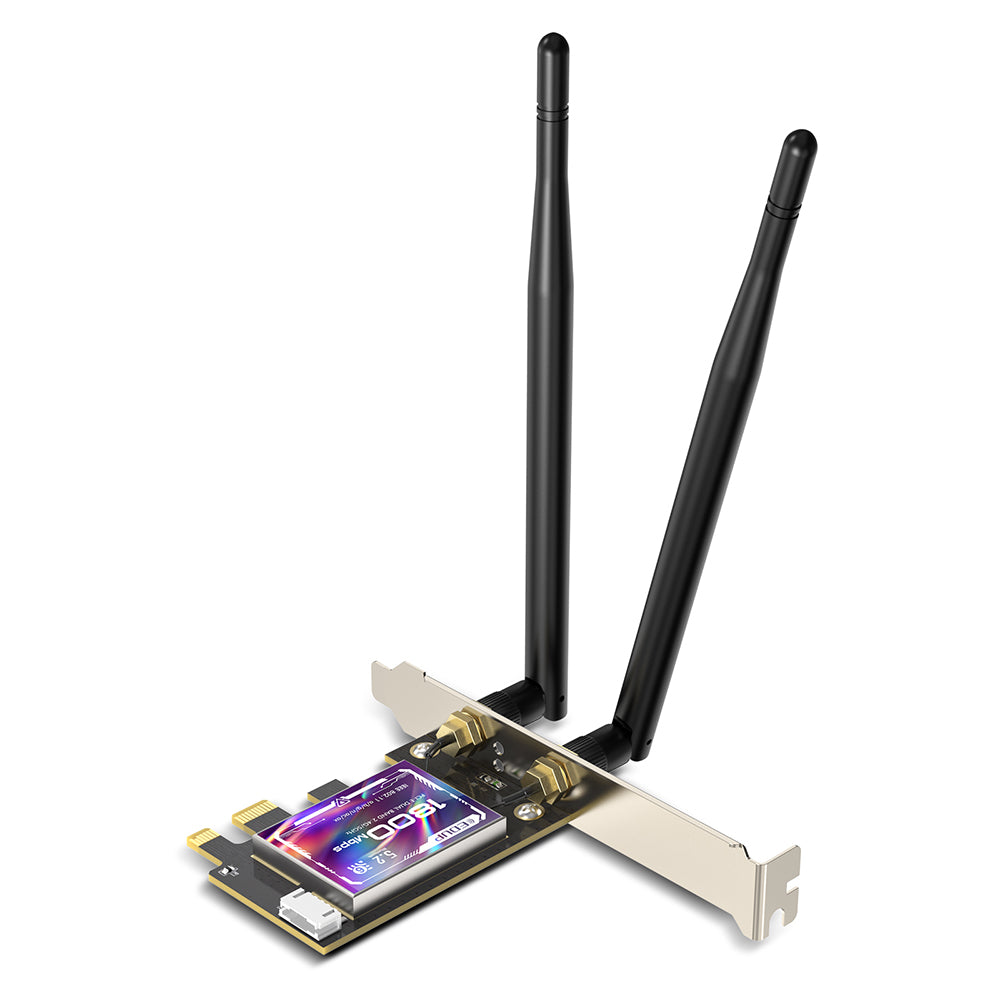

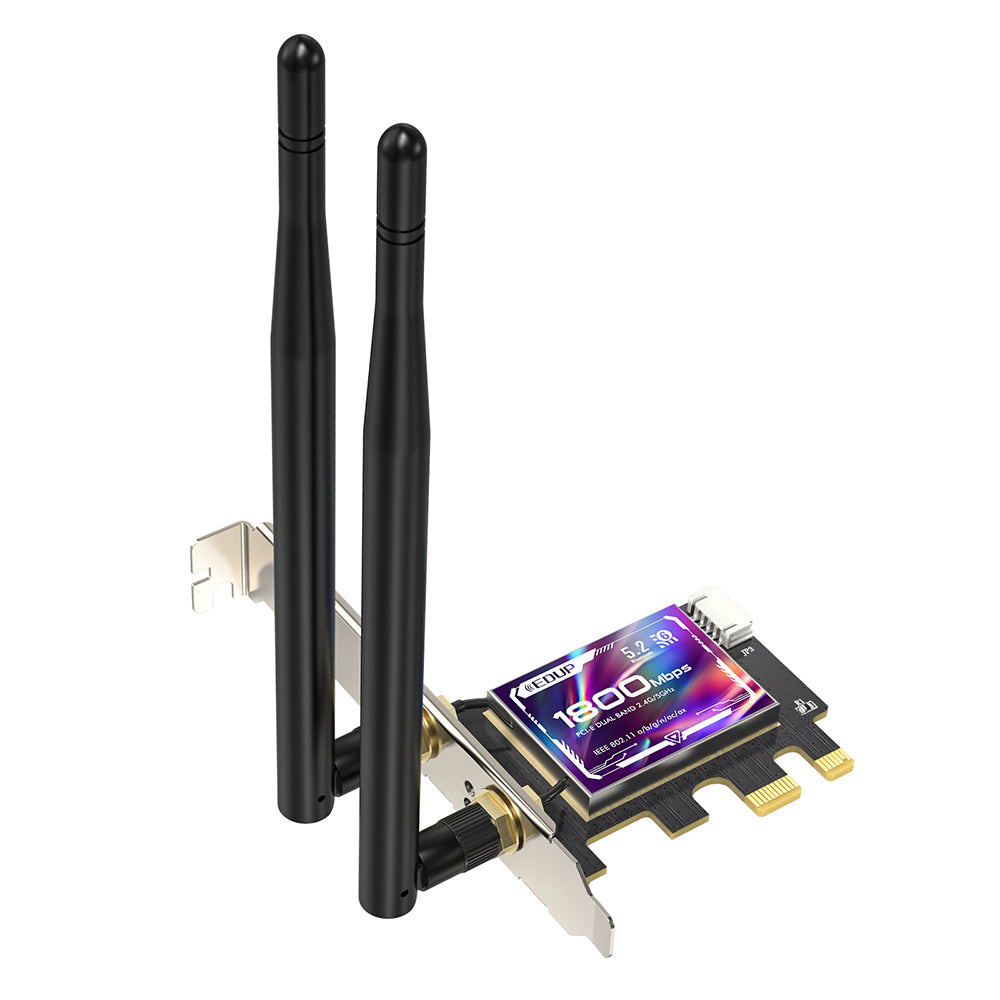

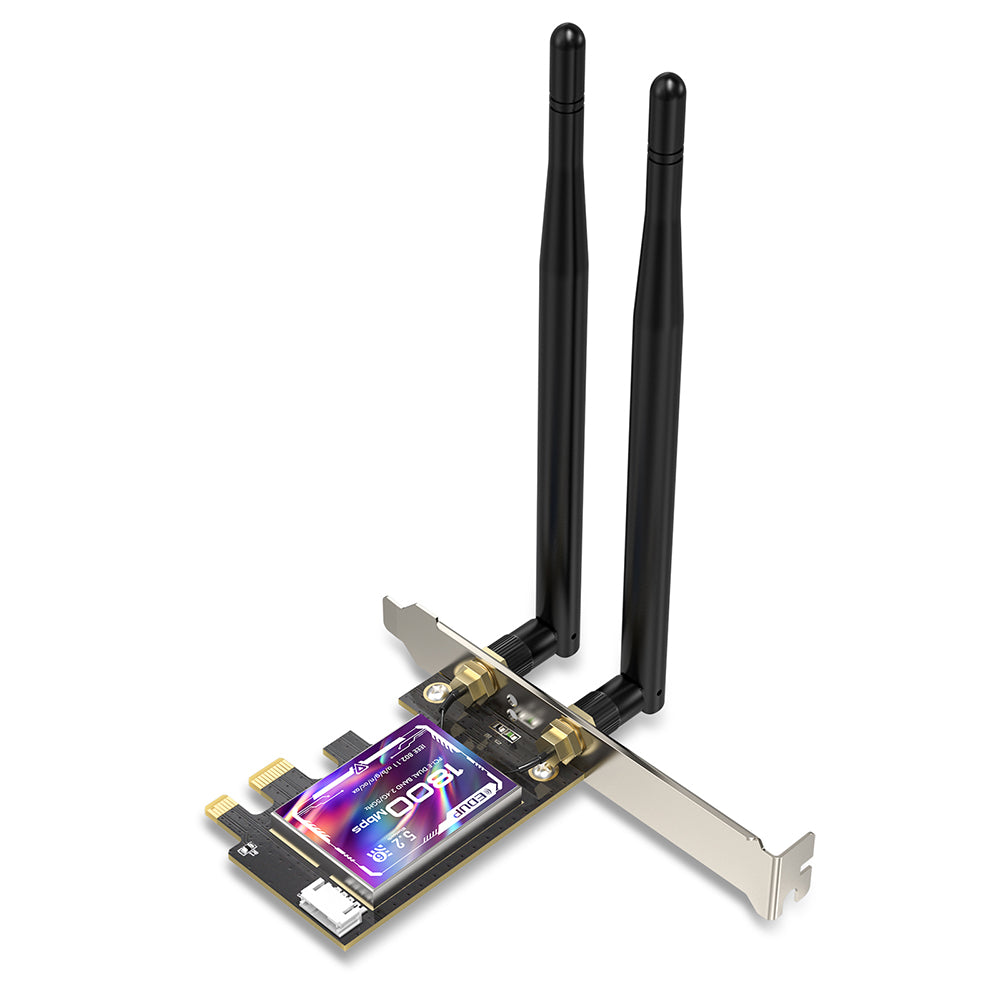

EDUP Network Adapter EP-9658 AX1800 WiFi (574M+1200M)+Bluetooth 5.2 PCI-E

Features
Complies with : IEEE 802.11a/b/g/n/ac/ax WiFi and Bluetooth 5.2 (WiFi: PCI-E, BT: USB)
Supports : PCI-E-X1/X4/X8/X16
Dual frequency : Optional 4G/5G dual frequency, 5GHz band frequency up to 1200Mbps, 2.4GHz band speed up to 600Mbps
Supports : Cisco CCX
Supports : Multiple BSSIDs
Router requirements : Router must support AX and use a 160MHz channel to reach 1200 Mbps

Specifications
Model : EP-9658
Chipset : Realtek RTL8852
Specifications : IEEE 802.11a/b/g/n/ac/ax WiFi and BT5.2 (WiFi: PCI-E, BT: USB)
PCI bus : PCI-E-X1/X4/X8/X16
Frequency Range : WiFi: 2.4GHz, 5.8GHz, BT: 2402MHz~2483MHz
Antenna : 2 6 dBi
Transmission rate : 2.4G up to 600Mbps, 5.8G up to 1200Mbps
Operating system : Microsoft Windows 10, 11, Linux , Chrome OS*
Dimensions (H x W x D) : M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)], M.2 1216: 12mm x 16mm x 1.67 (+-0.08)mm
Weights : M.2 2230: 2.83 +/– 0.3 g, M.2 1216: 0.67 +/– 0.1 g
Radio ON/OFF control : Supported
Connection interface : M.2: PCIe, USB
Operating temperature (Adapter shield) : 0°C to +80°C
Humidity Non-operating : 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)

Wi-Fi Alliance : Wi-Fi CERTIFIED* a, b, g, n, ac with wave 2 features, WMM*, WMM*-Power Save, WPA*, WPA2*, WPS*, PMF*, Wi-Fi Direct*, Wi-Fi Miracast*, Wi-Fi Agile Multiband*, Wi-Fi Optimized Connectivity*, Wi-Fi Location, Passpoint*, Wi-Fi Aware*, and Wi-Fi TimeSync*

IEEE WLAN Standard : IEEE 802.11-2016 and selected amendments (selected feature coverage), IEEE 802.11a, b, g, n, ac, ax, d, e, h, i, k, r, u, v, w, ai; Fine Timing Measurement based on 802.11-2016

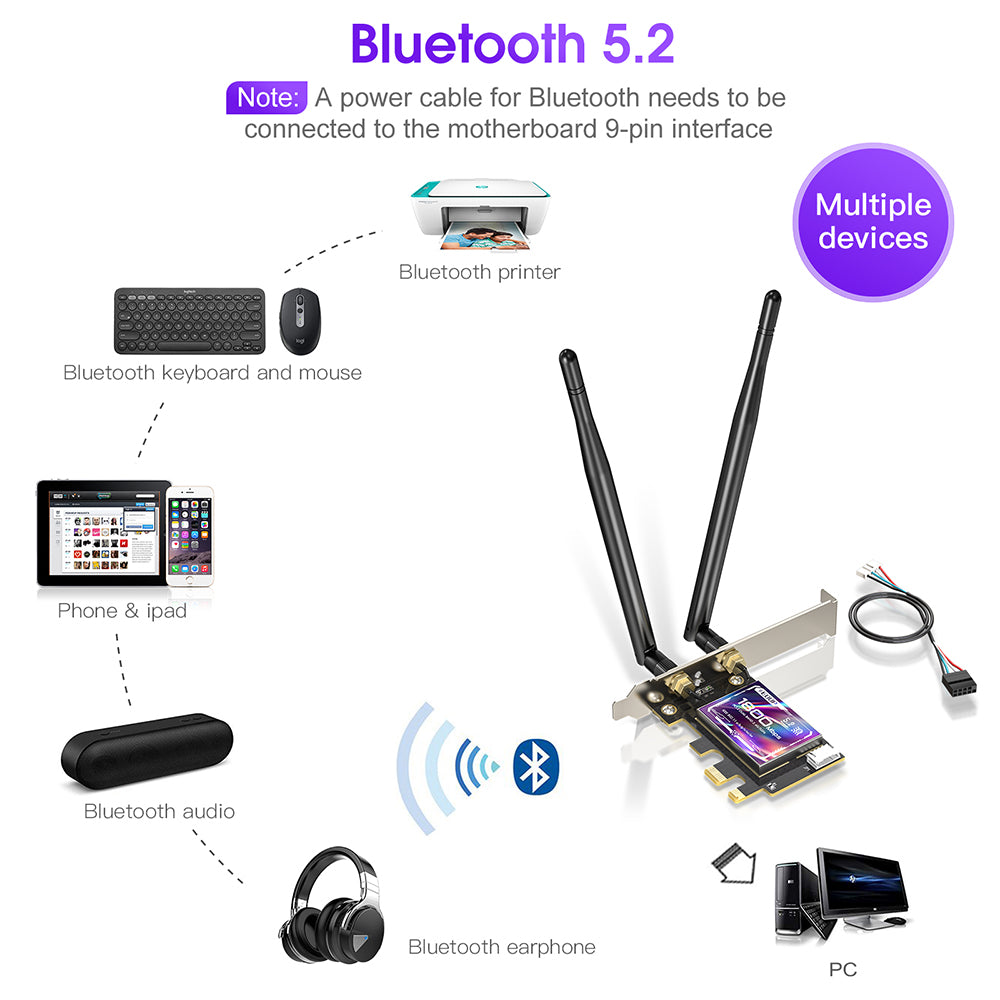

Bluetooth : Bluetooth 5.2
Security Methods : WPA* and WPA2* Personal and Enterprise, WPA3* (operating system support pending)
