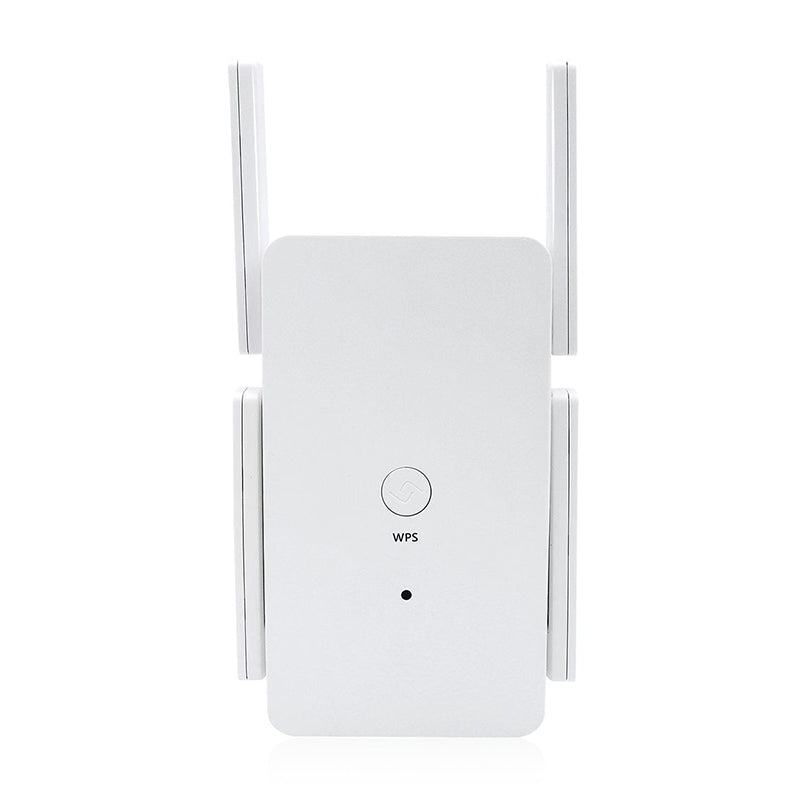

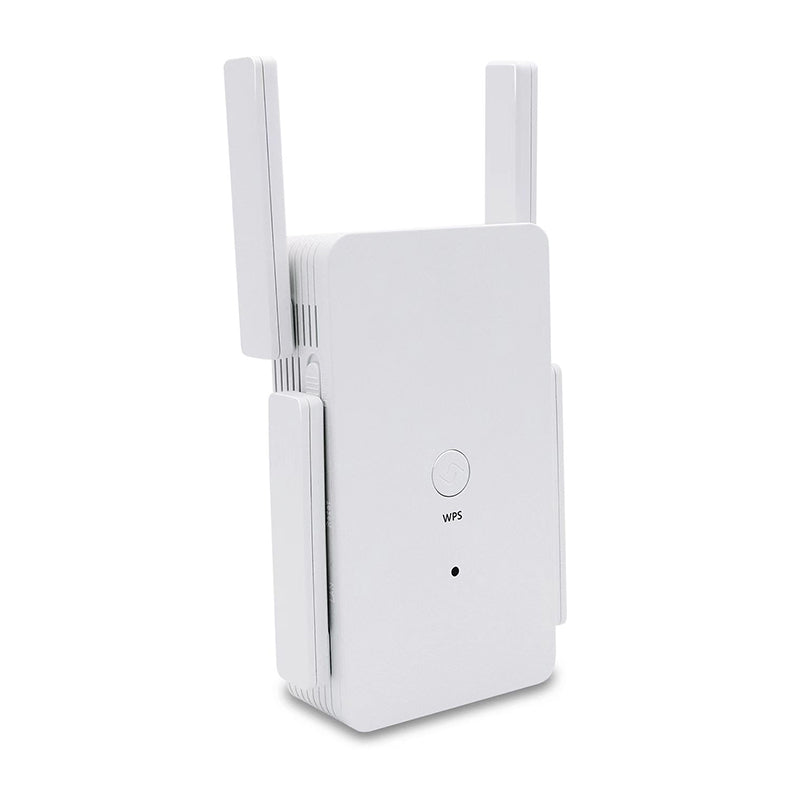

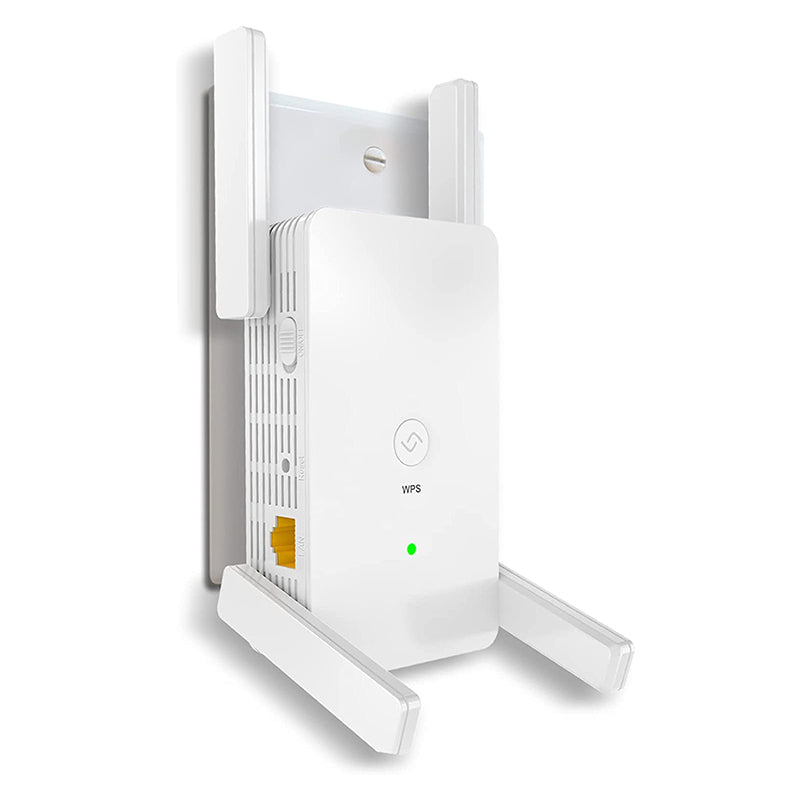

EDUP Wireless Repeater EP-2932 1200Mbps

Specifications

Range Extender Function: Boosts the wireless signal in areas that were previously inaccessible or difficult to wire. Its small size and wall-mounted design allow for easy deployment and flexible movement of the repeater.
1200mbps Repeater EP-AC2932: Designed to conveniently extend network coverage and improve signal strength on existing wireless networks, with wireless N speeds up to 1200 Mbps.

Hardware

Chipset: MTK7628+MTK7613B/580MHz
Memory: 64MB (Default)
FLASH: 8MB (Default)
Interface: 1 x 10/100M Ethernet (RJ45)
Buttons: 1 x WPS Button, 1 x Reset Button
Power: Plug-in design, compatible with national standards, US standards and European standards.
Maximum Power Consumption: < 10W
Device dimensions (Length x Width x Height): 83 x 75 x 122.6 mm
Packaging Dimensions (Length x Width x Height): 125 x 85 x 80 mm
Device weight: 0.224 kg (single item, excluding accessories and packaging)
Total Weight: 0.288 kg (single item, excluding accessories and packaging)

Operating Environment

Operating Temperature: -0°C to 55°C
Storage Temperature: -40°C to 100°C
Operating Humidity: 10% to 90% RH (non-condensing)
Storage Humidity: 5% to 90% RH (non-condensing)

Wireless Connection

Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency: 2.4 GHz, 5 GHz
Data Rate: Up to 300 Mbps at 2.4 GHz, up to 867 Mbps at 5 GHz
Transmit Power: 18dB±2dB at 2.4 GHz, 17dB±2dB at 5 GHz
Wireless Security: 64/128-bit WEP, WPA/WPA2-PSK2 encryption

System Requirements

Operating System: Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX, Linux
Browsers: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari, or other browsers with Java support.

Certifications

Certifications: SRRC, CE, FCC, RoHS
