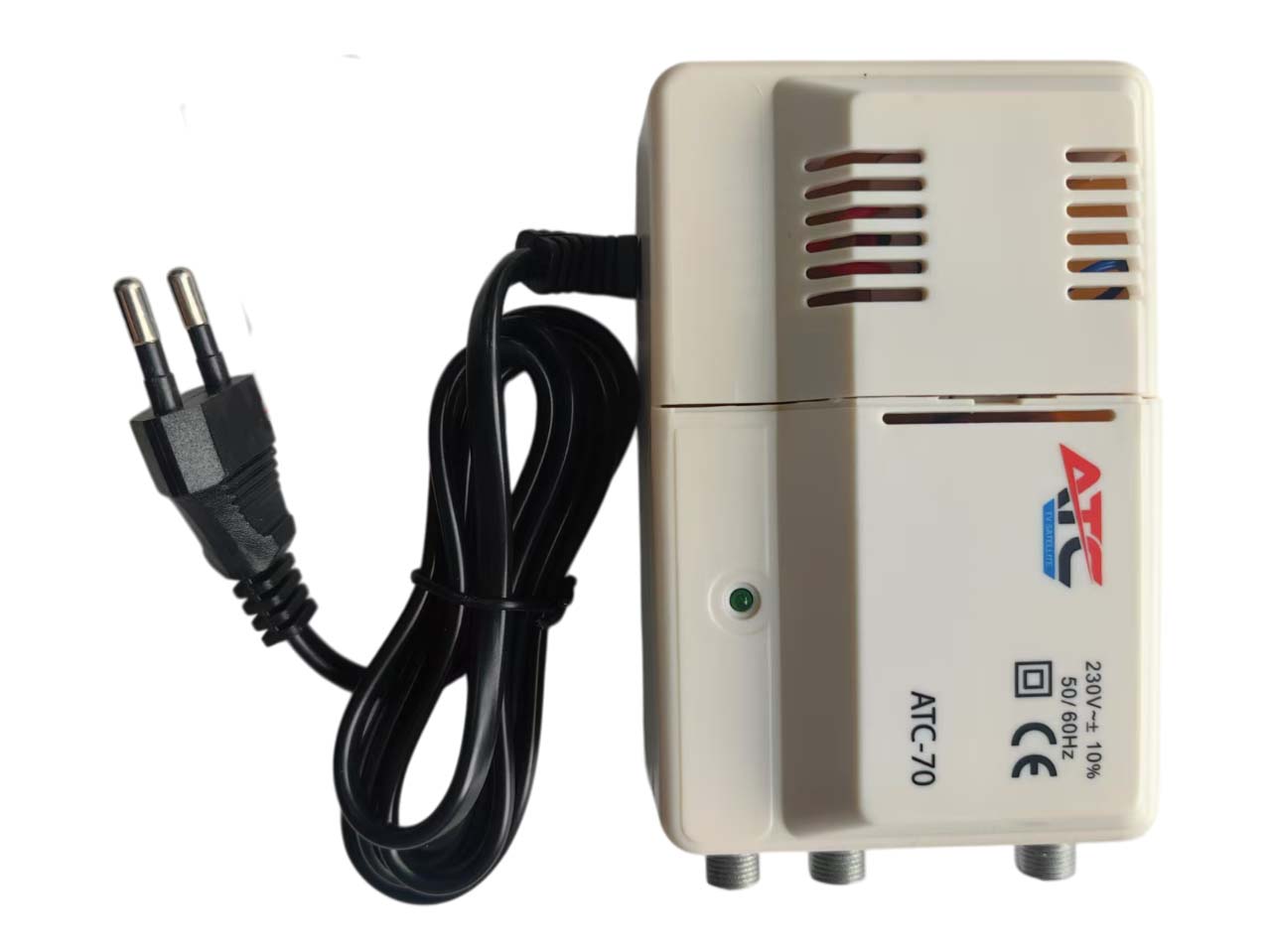

ATC-70 Indoor Multi-Zone Amplifier

Outputs : 1/2
VHF frequency range : 40-318 MHz
Gain : 14±2.0 (OUT 1), 3±2.0 (OUT 2)
Gain Adjustment : 16 dB
UHF frequency range : 470-862 MHz
Gain : 24±2.0 (OUT 1), 13±2.0 (OUT 2)
Gain Adjustment : 12 dB
Output Level :
104/91 (DIN 4500 dB), 101/88 (MD3-66 dB), 90/77 (MD2-60 dB), 88/75 (CTB-60 dB), 90/69 (CSO-60 dB), 92/77 (XMOD-60 dB)
102 (DIN 4500 dB), 99 (MD3-66 dB), 88 (MD2-60 dB), 86 (CTB-60 dB), 82 (CSO-60 dB), 89 (XMOD-60 dB)
Noise Level : <4.5 dB ≤3.0 dB <4.5 dB <3.5 dB
Return Loss : ≥10 dB
Mains Voltage : 230±10%, 50/60 Hz, 7 VA
Operating Temperature : -5..+60°C
Protection Index : IP 20 (suitable for indoor use)
