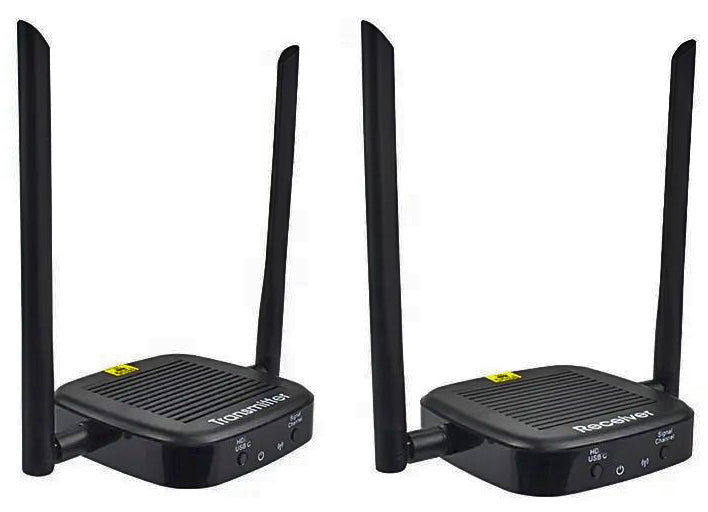

Wireless HDMI Transmitter and Receiver with Type C Output Loop 200m

Wireless HDMI USB Extender, AV Video Sender

Product Features :

HDMI video and audio signal transmission via 5.8G wireless module. Transmission distance in open environment up to 200 meters .
Support infrared return control.
Support TYPE-C input interface.
Support HDMI input interface.
Transmitter loop output support.
HD video signal resolution up to 1920*1080P@60Hz .
Compatible with HDMI 1.3 .
It uses international standard H.264 format for video compression and decompression, improving transmission efficiency and ensuring smooth playback.
HDCP 1.2 compliant – high-bandwidth digital content protection technology.
Ability to automatically recognize and configure various display modes.
Built-in automatic balancing system, the image remains smooth, clear and stable.
Easy installation, plug and play, no setup required.

Product specifications :

• Support agreement : HDMI 1.3
• Compression format : H.264
• Maximum Supported Resolution : 1920X1080P@60Hz
• Interface : HDMI-A RF
• Power consumption : 23dbm
• Signal Direction : Unidirectional
• Wireless frequency : 5.8 GHz
• IR transmitter frequency : 20-60KHz
• Operating temperature : -5℃ ~ +70℃
• Storage temperature : -20~+60℃
• Operating Humidity : 10~90%RH (Non-condensing)
• Storage Humidity : 5~95%RH (Non-condensing)
• Maximum Power Consumption : Transmitter = 4.75 W , Receiver = 3 W
• Dimensions : 100x100x26mm (LxWxH) (Antenna not included)
• Gross weight : 250g
• Material : Plastic, aluminum alloy
