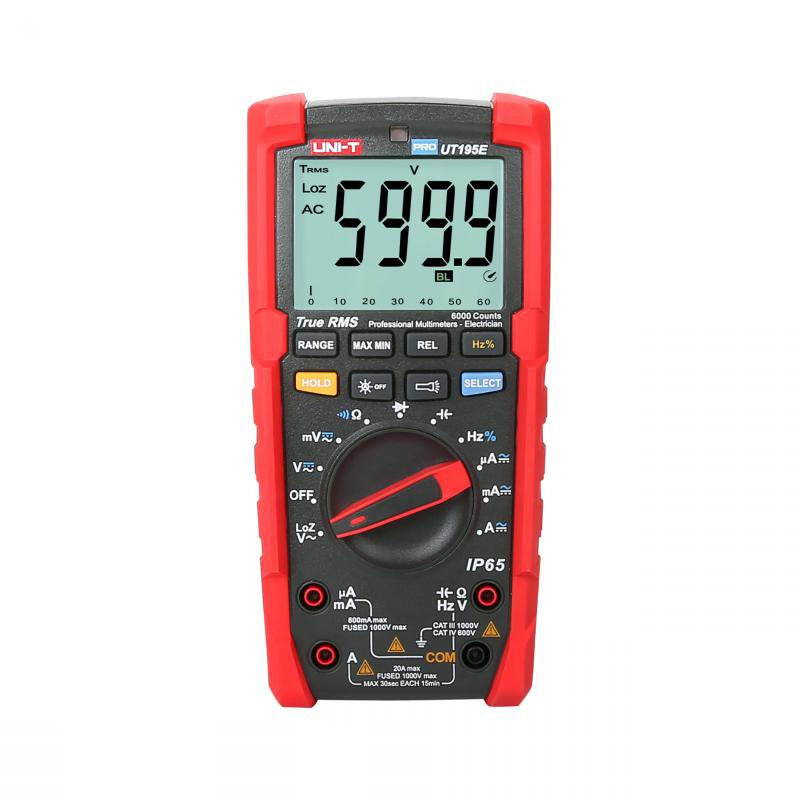

True RMS Multimeter Uni-T PRO UT195E

MEASUREMENT

• DC Voltage: 600mV/6V/60V/600V/1000V ±(0.5%+3)


• AC Voltage: 600mV / 6V / 60V / 600V / 750V / LoZ 600V ± (0.7% + 3)


• DC current: 600 µA / 6000 µA / 60 mA / 600 mA / 6 A / 20 A ± (0.8% + 3)


• AC current: 600 µA / 6000 µA / 60 mA / 600 mA / 6 A / 20 A ± (1% + 3)


• Resistance: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm ± (0.8% + 2)


• Capacitance: 6 nF / 60 nF ~ 600 µF / 6 mF ~ 60 mF; ± (3% + 5)


• Frequency: 60Hz~10MHz ±(0.1%+4)


• Filling factor: 0.1%-99.9%


• Diode test


• Continuity check

• Automatic/manual measurement range change


• AC voltage measurement for sources with low internal resistance (LoZ)


• True RMS


• Related measurement function


• MAX/MIN value recording


• Automatic closing


• Low battery indicator


• Freeze the last reading


• Analog graph: 31 segments (number of measurements: 10/s)


• Automatic LCD backlight


• A flashlight


• Maximum reading: 6000

• Power supply: 9V battery (6F22 / 6LR61)


• Screen size: 66 x 51 mm


• Number of measurements: 3/s


• Product dimensions: 206.5 x 95.5 x 61 mm


• Product weight: 450 g

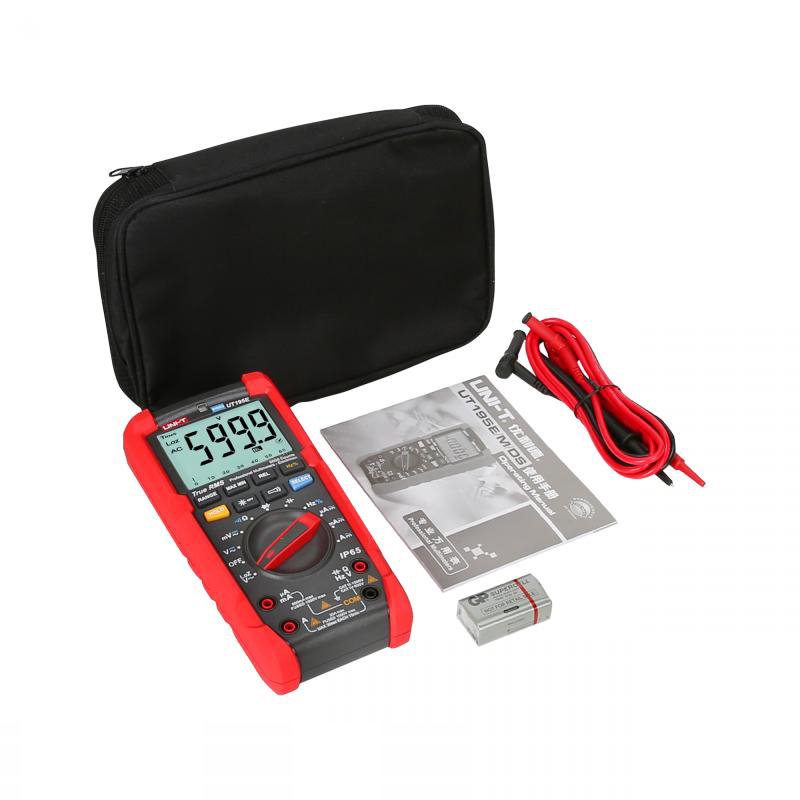

• Accessories: battery, test leads, case, CD
