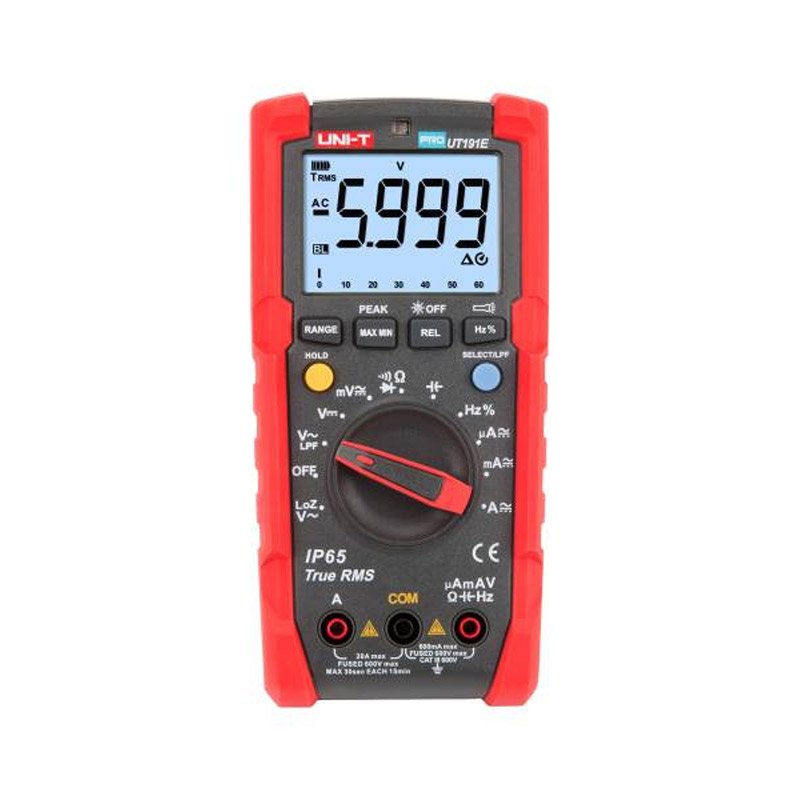

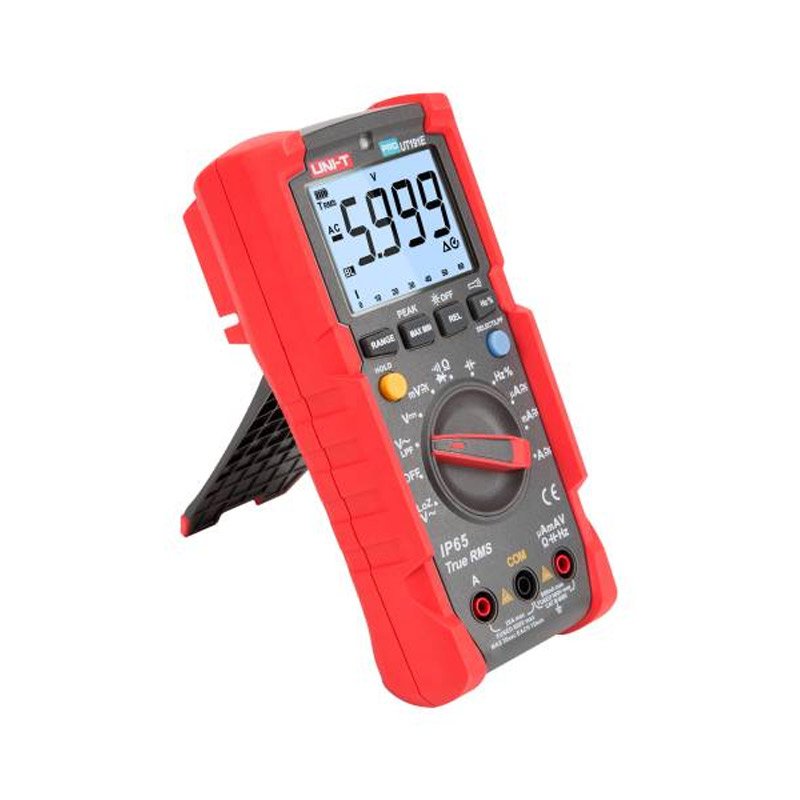

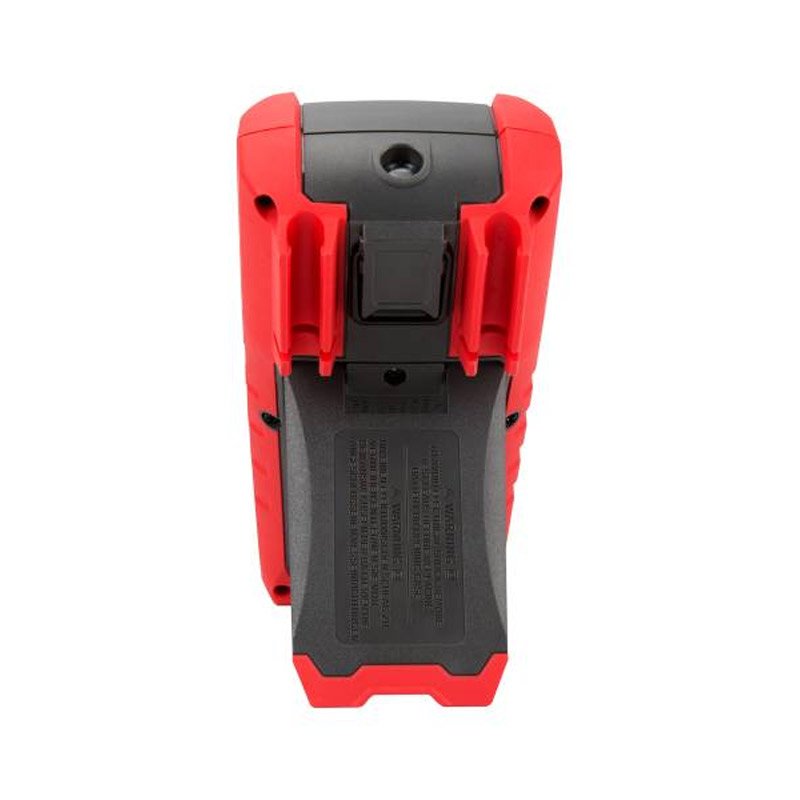

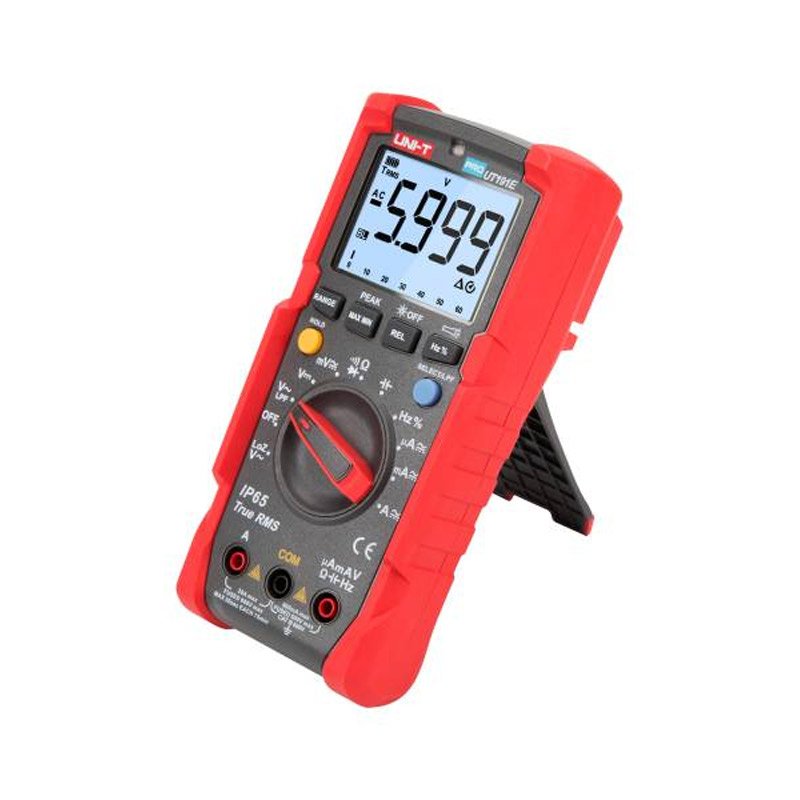

Uni-T PRO UT191E multimeter

MEASUREMENT SIZE

• DC voltage: 600 mV / 6 V / 60 V / 600 V ± (0.5% + 3)


• AC Voltage: 600 mV / 6 V / 60 V / 600 V ± (0.7% + 3) (Measured Frequency Range: 45 ~ 400 Hz)


• AC voltage for low internal impedance sources: 600 V (2% + 5)


• AC voltage with low-pass filter activated: 600 V (2% + 5)


• DC current: 600 mA, 6000 mA / 60 mA / 600 mA / 6 A / 20 A (0.8% + 3)


• AC voltage: 600 mA, 6000 mA / 60 mA / 600 mA / 6 A / 20 A (1% + 3)


• Resistance: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm ± (0.8% + 2)


• Capacitance: 6 nF / 60 nF ~ 600 μF / 6 mF ~ 60 mF ± (3% + 5)


• Frequency: 10 Hz ~ 1 MHz ± (0.1% + 4)


• Filling factor: 0.1% ~ 99.9% ± (0.2% + 5)


• Diode test


• Checking circuit continuity

• Automatic/manual measurement range change


• True RMS measurement


• Writing MAX / MIN / peak value


• Related measurement function


• Rear LCD screen


• Analog bar: 31 segments


• Low battery indicator


• Automatic shutdown


• Maximum reading: 6000

• Power supply: 9 V battery


• Screen size: 58 x 42 mm


• Product dimensions: 180 x 87 x 59 mm


• Product weight: 428 g


• Accessories: Battery, test leads, case
